Mitre cut router toolholder 45° D. 75 x Ht. 26 x M14 mm Z 6 - Diamwood Platinum

Ref. DW-PLA477481000

‹ Revenir à la catégorie

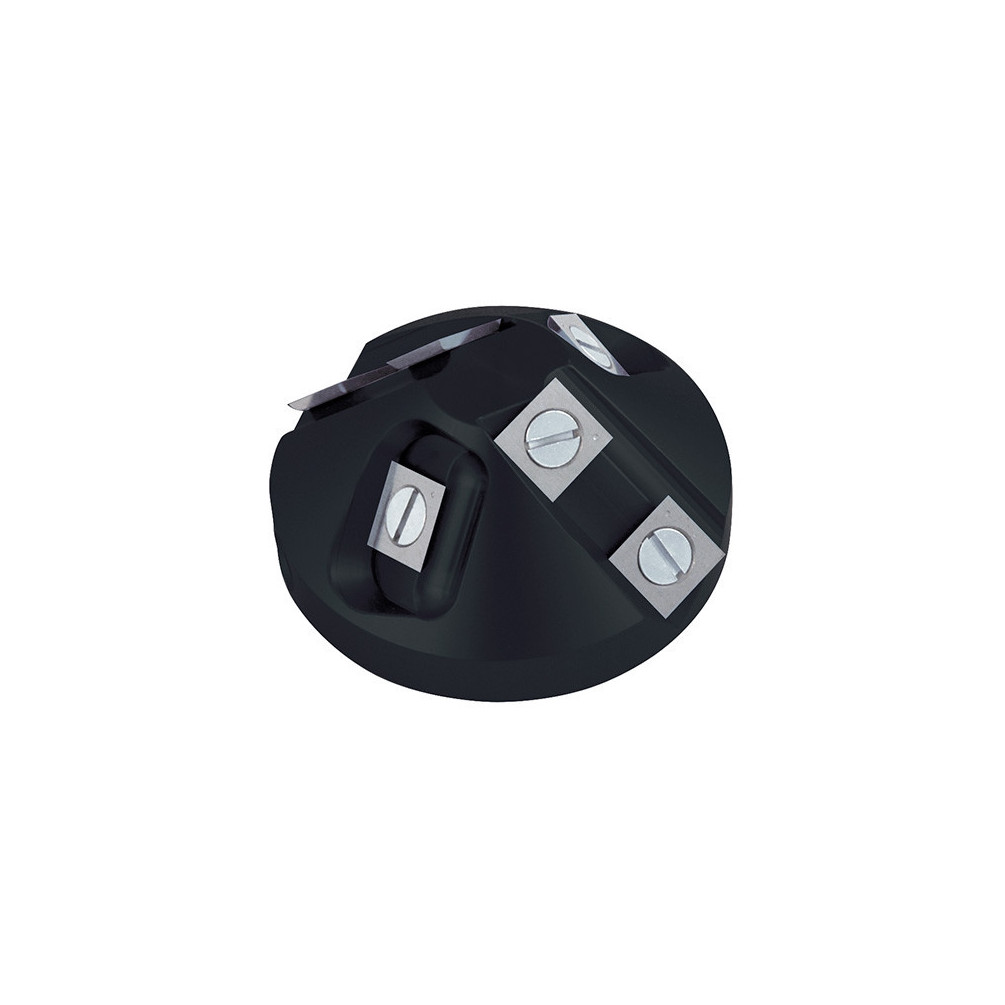

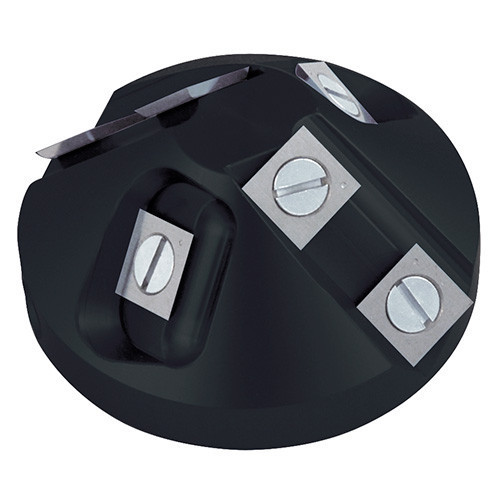

Mitre cut router toolholder 45° D. 75 x Ht. 26 x M14 mm Z 6 - Diamwood Platinum

View larger

*Photos non contractuelles

Partager ce produit

En savoir + sur Mitre cut router toolholder 45° D. 75 x Ht. 26 x M14 mm Z 6 - Diamwood Platinum

Mitre-cut and 45° chamfer tool holder for assembling mouldings that cannot be counter-profiled (old-fashioned assembly: small wood). Allows you to assemble the profiles of your choice. Light alloy base body. Diameter: 75 mm. Height: 26 mm. Number of carbide inserts: 6. Dimensions of carbide inserts: 14 x 14 x 2 mm (4 cuts). Speed of rotation: 7,000 to 10,000 rpm. Anti-rejection shape, limited to chip thickness. Inserts held by M5 x 8 mm countersunk screws. Tool suitable for routers with manual feed (MAN). Supplied with M14 x L. 40 mm screws. Can be fitted with M16 mounting screw ref: DW-PLA4771247000 (optional). Diamwood PLATINUM products are top-of-the-range for professional and intensive use. This product is of high quality SWISS design and complies with current standards. Diamwood, expert in equipment for the building trade, has been mastering tools and stationary machines for over 15 years.

Data sheet

Type of product	Porte-outils coupe d'onglet
Diameter	75
Height	26
Mounting	M14
Material	Alloy steel
Recommendation	Bois
Content	1
Toothing	Z 6Z 6
Person responsible EU	PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr
WARNING and SAFETY	Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr
User manual	Présentation du produit : Le porte-outils de toupie Diamwood coups d'onglet 45° est conçu pour l'assemblage de moulures, garantissant une finition de qualité. Utilisé depuis des années par des professionnels, il est parfait pour les travaux de précision. Utilité principale : Cet outil permet de créer des assemblages à l'ancienne avec vos profils préférés. Il est fonctionnel pour les toupies à avance manuelle, offrant simplicité et efficacité. Caractéristiques principales : - Diamètre : 75 mm - Hauteur : 26 mm - Nombre de plaquettes carbure : 6 - Dimensions des plaquettes : 14 x 14 x 2 mm - Vitesse de rotation : 7000 à 10 000 tr/min. Instructions d'utilisation : 1. Installer le porte-outils sur la toupie en utilisant les vis M14 fournies. 2. Régler la vitesse de rotation selon le matériau à travailler. 3. Utiliser sans forcer pour un travail net et précis. Précautions d’utilisation : Éviter de surcharger l'outil pour prévenir l'usure prématurée, porter des équipements de protection individuelle lors de l'utilisation. Entretien et nettoyage : Après chaque utilisation, nettoyer les plaquettes inoxydables et vérifier l'état de l'outil. Conserver dans un endroit sec pour éviter la corrosion.
