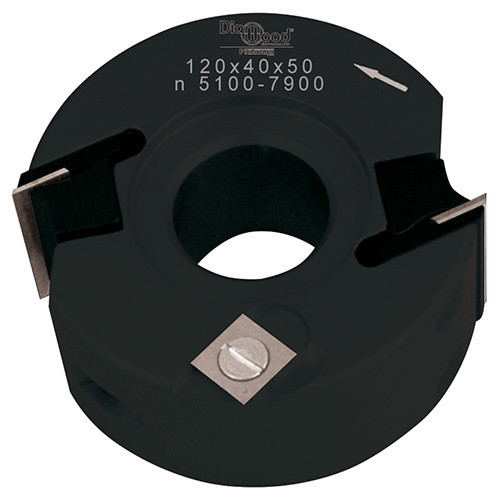

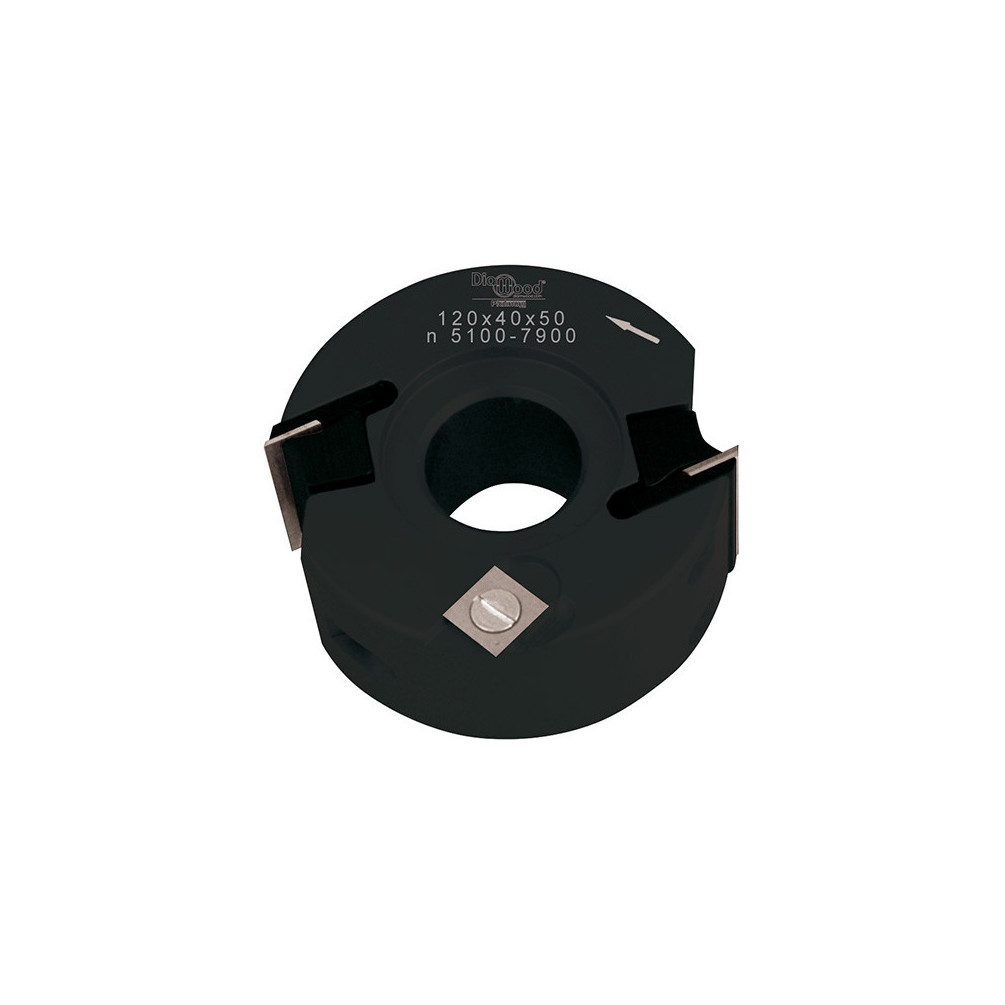

Router toolholders for rabbeting and profiling D. 120 x Al. 50 x Ht. 40 mm Z 2 and V 1+1 - Diamwood Platinum

Ref. DW-PLA477483003

‹ Revenir à la catégorie

Router toolholders for rabbeting and profiling D. 120 x Al. 50 x Ht. 40 mm Z 2 and V 1+1 - Diamwood Platinum

View larger

*Photos non contractuelles

Partager ce produit

En savoir + sur Router toolholders for rabbeting and profiling D. 120 x Al. 50 x Ht. 40 mm Z 2 and V 1+1 - Diamwood Platinum

Toolholders with grooves for rabbeting and profiling various types of wood and panels. Base body in light alloy. Diameter: 120 mm. Height : 40 mm. Bore : 50 mm. Speed of rotation : 5100 to 7900 rpm. Number of knives : 2. Number of shaves : 1 + 1. Dimensions of knives : 40 x 12 x 1.5 mm (2 cuts). Dimensions of levellers : 14 x 14 x 2 mm (4 cuts). Possibility of fitting profiled bars 40 x 4 mm high, type DW-PLA477479FHT40. For moulding with profiled irons, the iron supports and levellers must be removed. Identical knives must be used in each set. 50 mm high knives are not compatible with these toolholders. Tool suitable for spindle moulders with mechanical feed (MEC). Can be mounted at the end of the shaft. Diamwood PLATINUM products are top-of-the-range for intensive professional use. This product is of high quality SWISS design and complies with current standards. Diamwood, expert in equipment for the construction industry, has been mastering tools and stationary machines for over 15 years.

Data sheet

Type of product	Porte-outils à feuillurer et profiler
Diameter	120
Bore	50
Height	40
Material	Alloy steel
Recommendation	Bois
Content	1
Toothing	Z 2 + V 1+1
Person responsible EU	PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr
WARNING and SAFETY	Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr
User manual	Présentation du produit : Le porte-outils de toupie à feuillurer et profiler de Diamwood est conçu pour réaliser des feuillurages et profilages de précision sur diverses essences de bois et panneaux. Utilité principale : Permet une utilisation professionnelle dans le secteur du bâtiment, répond aux normes de qualité élevées. Caractéristiques principales : Diamètre 120 mm, alésage 50 mm, hauteur 40 mm, 2 fers, araseurs 1 + 1, vitesse de rotation de 5100 à 7900 tr/min. Instructions d'utilisation : 1. Vérifiez la compatibilité des fers et araseurs. 2. Montez les fers identiques sur le porte-outils. 3. Fixez le porte-outils sur la toupie. 4. Réglez la vitesse de rotation entre 5100 et 7900 tr/min. Précautions d’utilisation : Utilisez uniquement des fers identiques pour éviter les déséquilibres, vérifiez les araseurs non endommagés avant utilisation. Entretien et nettoyage : Nettoyez régulièrement le porte-outils et les fers après chaque utilisation pour prolonger leur durée de vie.
