Router toolholders for rabbeting and profiling D. 120 x Al. 50 x Ht. 50 mm Z 2 and V 1+1 - Diamwood Platinum
Ref. DW-PLA477483005
*Photos non contractuelles
En savoir + sur Router toolholders for rabbeting and profiling D. 120 x Al. 50 x Ht. 50 mm Z 2 and V 1+1 - Diamwood Platinum

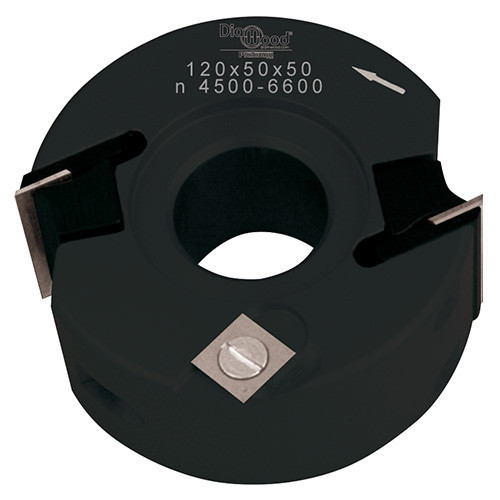

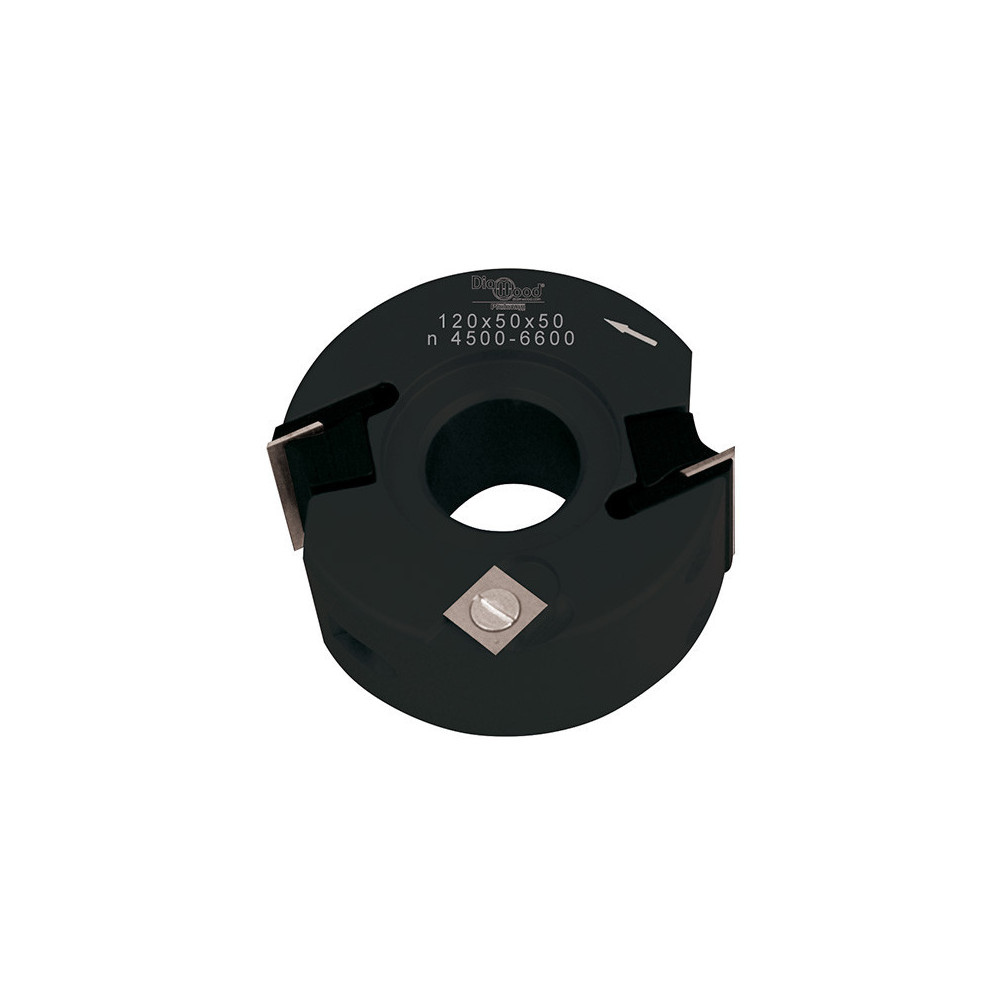

Toolholders with grooves for rabbeting and profiling various types of wood and panels. Base body in light alloy. Diameter: 120 mm. Height : 50 mm. Bore : 50 mm. Speed of rotation : 4500 to 6600 rpm. Number of knives : 2. Number of shaves : 1 + 1. Dimensions of knives : 50 x 12 x 1.5 mm (2 cuts). Dimensions of levellers : 14 x 14 x 2 mm (4 cuts). Possibility of fitting 50 x 5.5 mm type DW-PLA477479FHT50 or 40 x 4 mm type DW-PLA477479FHT40 profiled bars. For moulding with profiled irons, the iron supports and levellers must be removed. Identical knives must be used in each set. Tool suitable for routers with mechanical feed (MEC). Diamwood PLATINUM products are top-of-the-range for professional and intensive use. This product is of high quality SWISS design and complies with current standards. Diamwood, expert in equipment for the construction industry, has been mastering tools and stationary machines for more than 15 years.
Data sheet
| Type of product | Porte-outils à feuillurer et profiler |
| Diameter | 120 |
| Bore | 50 |
| Height | 50 |
| Material | Alloy steel |
| Recommendation | Bois |
| Content | 1 |
| Toothing | Z 2 + V 1+1 |
| Person responsible EU | PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr |
| WARNING and SAFETY | Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr |
| User manual | Présentation du produit : Le porte-outils de toupie Diamwood est conçu pour réaliser feuillurage et profilage dans divers matériaux, notamment le bois et les panneaux. Il est fabriqué avec un corps en alliage léger, garantissant une longue durée de vie et une utilisation professionnelle. Utilité principale : Cet outil est essentiel pour les artisans du BTP qui souhaitent obtenir des coupes précises et de qualité. Avantages : Haute qualité de fabrication, normes suisses respectées, compatibilité avec divers fers. Caractéristiques principales : - Diamètre : 120 mm - Hauteur : 50 mm - Alésage : 50 mm - Vitesse de rotation : 4500 à 6600 tr/min - Nombre de fers : 2 - Nombre d'araseurs : 1 + 1. Instructions d'utilisation : 1. Monter l'outil sur la toupie. 2. Ajuster la vitesse de rotation selon le matériau. 3. Effectuer le feuillurage ou le profilage. 4. Démonter et nettoyer après utilisation. Précautions d'utilisation : Toujours utiliser des fers identiques par jeu. Respecter les limites de vitesse, et porter des équipements de protection. Entretien et nettoyage : Vérifiez régulièrement l'état des fers et araseurs. Nettoyer l'outil après chaque utilisation avec un chiffon sec. |
