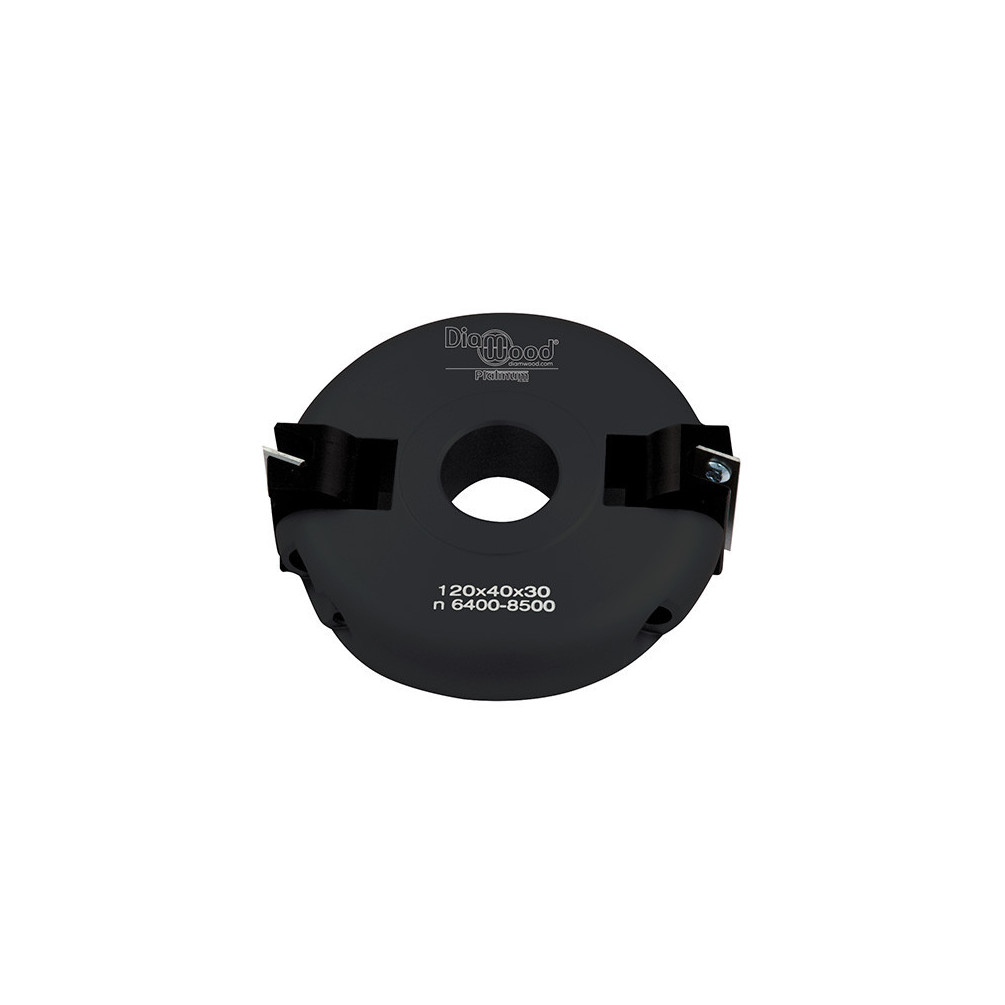

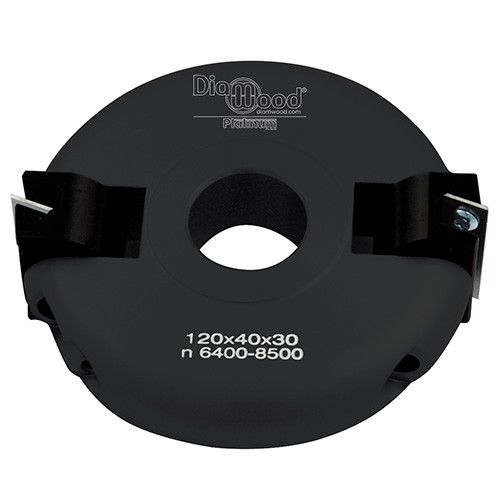

Router tool holder tiltable from 0 to 90° D. 120 x Al. 30 x Ht. 40 mm Z 2 - Diamwood Platinum

Ref. DW-PLA477483009

‹ Revenir à la catégorie

Router tool holder tilting from 0 to 90° D. 120 x Al. 30 x Ht. 40 mm Z 2 - Diamwood Platinum

View larger

*Photos non contractuelles

Partager ce produit

En savoir + sur Router tool holder tiltable from 0 to 90° D. 120 x Al. 30 x Ht. 40 mm Z 2 - Diamwood Platinum

Tilting tool holder for making various chamfers. Suitable for machining solid wood and derived timber products. Light alloy base body. Diameter: 120 mm. Height : 40 mm. Bore : 30 mm. Number of cuts : 2. Insert dimensions : 40 x 12 x 1.5 mm. Speed of rotation : 6400 to 8500 rpm. Indexed angle positioning from 7.5 to 7.5° to obtain the most common angles: 15, 22.5 and 45°. Anti-rejection shape, limited to the thickness of the chip. Tool suitable for routers with manual feed (MAN). Diamwood PLATINUM products are top-of-the-range for intensive professional use. This product is of high quality SWISS design and complies with current standards. Diamwood, expert in equipment for the construction industry, has been mastering tools and stationary machines for more than 15 years.

Data sheet

Type of product	Porte-outils inclinable de 0° à 90°
Diameter	120
Bore	30
Height	40
Material	Alloy steel
Recommendation	Bois
Content	1
Toothing	Z 2
Person responsible EU	PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr
WARNING and SAFETY	Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr
User manual	Présentation du produit : Le porte-outils de toupie inclinable de Diamwood est un outil essentiel pour l'usinage du bois. Il permet d'exécuter divers chanfreins avec une grande précision. Son inclinaison de 0 à 90° lui confère une polyvalence inégalée. Caractéristiques principales : - Diamètre : 120 mm - Alésage : 30 mm - Hauteur : 40 mm - Nombre de coupes : 2 - Dimensions des plaquettes : 40 x 12 x 1,5 mm - Vitesse de rotation : 6400 à 8500 tr/min Instructions d'utilisation : 1. Fixez le porte-outils à la toupie de manière sécurisée. 2. Ajustez l'angle d'inclinaison selon le type de chanfrein souhaité. 3. Sélectionnez la vitesse de rotation adaptée au matériau à usiner. 4. Commencez l'usinage en veillant à maintenir une pression constante et équilibrée. Précautions d'utilisation : - Toujours porter des équipements de protection (lunettes, gants). - Vérifiez que le porte-outils est correctement fixé avant chaque utilisation. - Ne pas dépasser la vitesse de rotation recommandée. Entretien et nettoyage : - Nettoyez régulièrement le porte-outils après utilisation pour éviter l'accumulation de résidus. - Inspectez les plaquettes pour détecter tout signe d'usure et remplacez-les si nécessaire afin de garantir la qualité des coupes.
