Router toolholders with extendable slot D. 150 x Al. 30 x Th. 5 to 9.5 x D. 28 mm Z 2+2 and V 2+2 - Diamwood Platinum

Ref. DW-PLA477484003

‹ Revenir à la catégorie

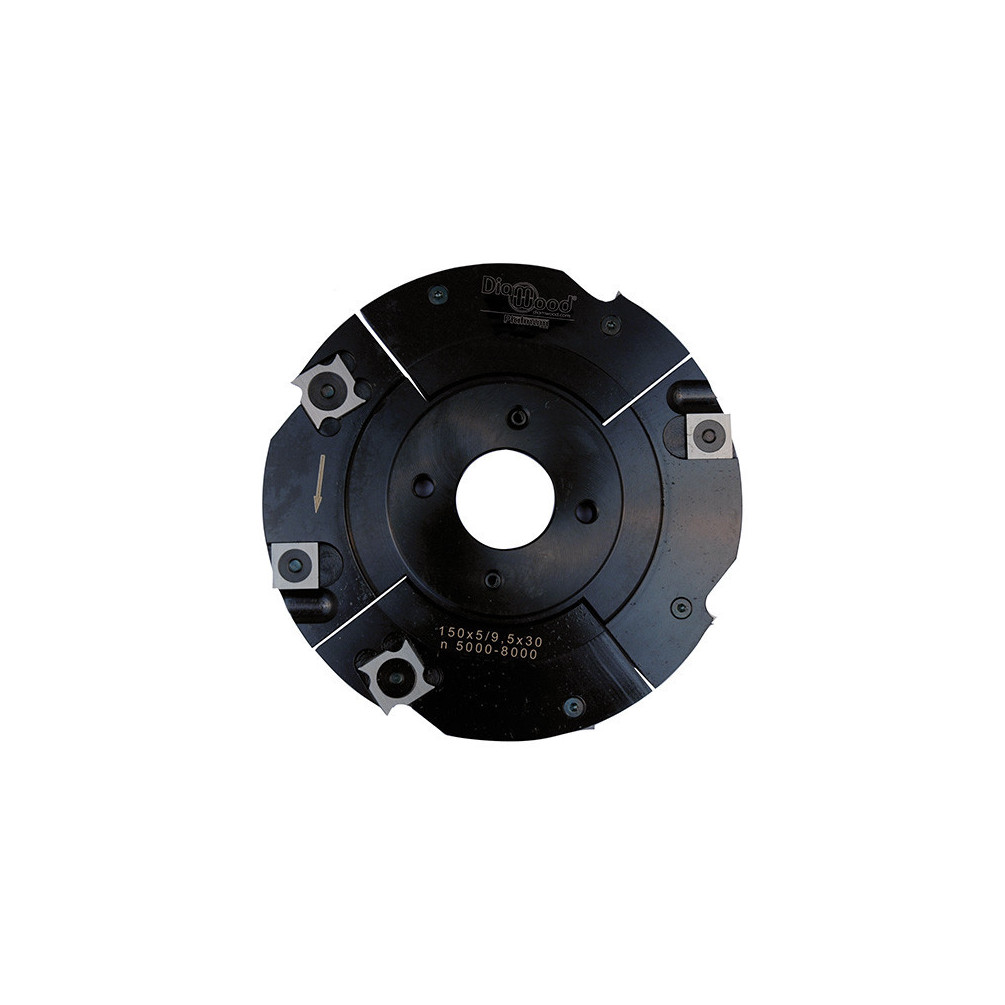

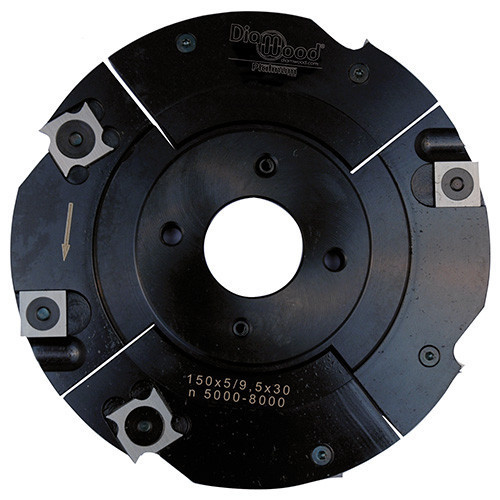

Router toolholders with extendable slot D. 150 x Al. 30 x Th. 5 to 9.5 x D. 28 mm Z 2+2 and V 2+2 - Diamwood Platinum

View larger

*Photos non contractuelles

Partager ce produit

En savoir + sur Router toolholders with extendable slot D. 150 x Al. 30 x Th. 5 to 9.5 x D. 28 mm Z 2+2 and V 2+2 - Diamwood Platinum

Extendable groove toolholder for grooving solid and exotic woods, chipboard and plywood. Two-piece steel base body. Anti-rejection shape, limited to chip thickness. Height adjustment by intermediate ring. Diameter: 150 mm. Thickness : 5 to 9.5 mm. Bore : 30 mm. Number of cuts : 4. Number of shims : 4. Dimensions of inserts : 18 x 18 x 1.95 mm. Flush dimensions : 14 x 14 x 2 mm. Grooving depth : 28 mm. Speed of rotation : 5000 to 8000 rpm. Tool suitable for spindle moulders with mechanical feed (MEC). Supplied without intermediate rings. Diamwood PLATINUM products are top-of-the-range for intensive professional use. This product is of high quality SWISS design and complies with current standards. Diamwood, expert in equipment for the construction industry, has been mastering tools and stationary machines for more than 15 years.

Data sheet

Type of product	Porte-outils à rainure extensible
Diameter	150
Bore	30
Thickness	5 à 9,5
Material	Alloy steel
Recommendation	Bois
Content	1
Toothing	Z 2+2 + V 2+2
Depth	28
Person responsible EU	PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr
WARNING and SAFETY	Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr
User manual	Présentation du produit : Le porte-outils de toupie à rainure extensible Diamwood est idéal pour réaliser des travaux de rainurage précis sur différents types de bois. Utilité principale : Conçu pour les professionnels, il permet de rainurer le bois massif, les panneaux agglomérés et les contreplaqués, tout en offrant une excellente durabilité. Caractéristiques principales : - Diamètre : 150 mm - Alésage : 30 mm - Épaisseur : de 5 à 9,5 mm - Nombre de coupes : 4 - Profondeur de rainurage : 28 mm - Vitesse de rotation : 5000 à 8000 tr/min Instructions d’utilisation : Installez le porte-outils sur la toupie, réglez la hauteur avec la bague intermédiaire selon l’épaisseur du matériau, et commencez le rainurage en respectant la vitesse recommandée. Précautions d’utilisation : Toujours porter des équipements de protection individuelle, vérifier le montage de l’outil avant utilisation et ne jamais forcer l’outil lors du rainurage. Entretien et nettoyage : Après chaque utilisation, nettoyez soigneusement les résidus de matière pour éviter l'accumulation qui pourrait détériorer le produit.
