Router toolholders for rabbeting and tenoning D. 150 x Al. 30 x Th. 14 to 28 x D. 59 mm Z 2+2 and V 2+2 - Diamwood Platinum

Ref. DW-PLA477485000

‹ Revenir à la catégorie

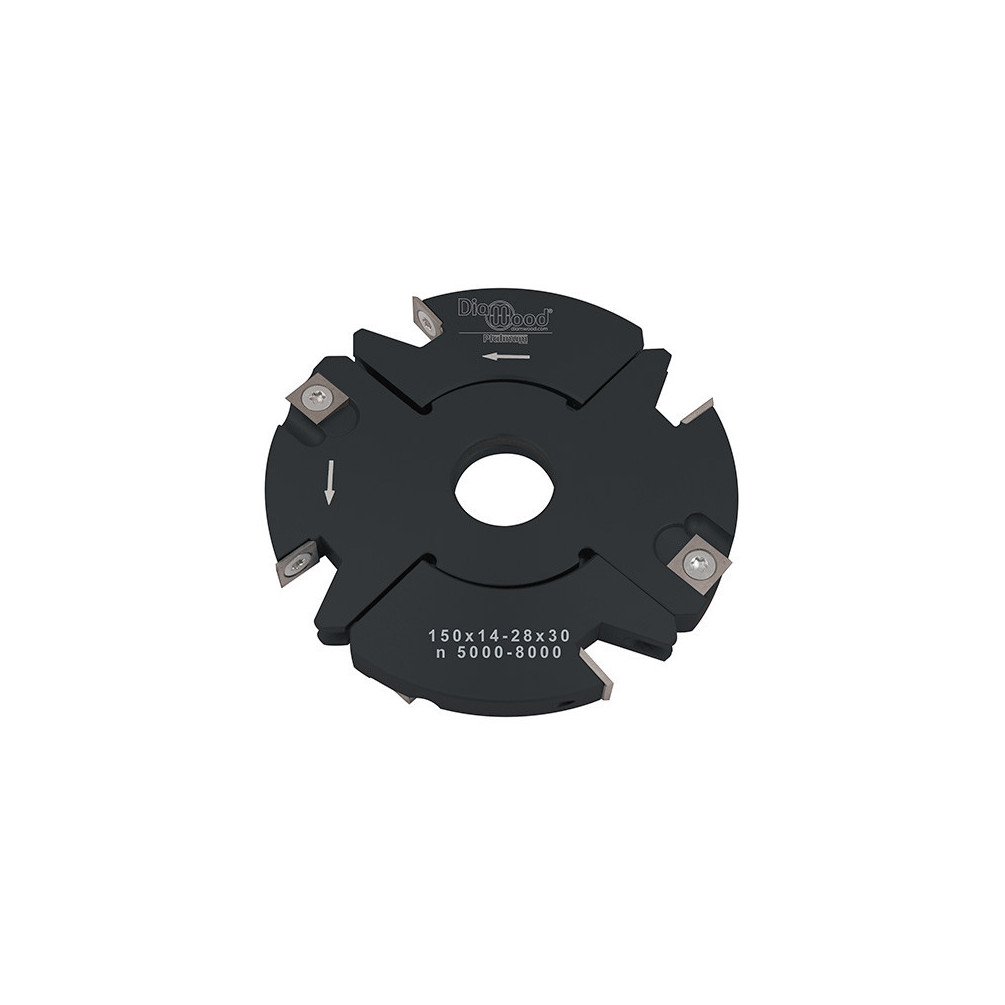

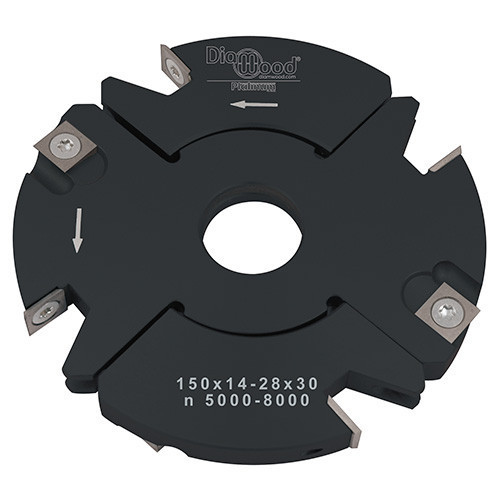

Router toolholders for rabbeting and tenoning D. 150 x Al. 30 x Th. 14 to 28 x D. 59 mm Z 2+2 and V 2+2 - Diamwood Platinum

View larger

*Photos non contractuelles

Partager ce produit

En savoir + sur Router toolholders for rabbeting and tenoning D. 150 x Al. 30 x Th. 14 to 28 x D. 59 mm Z 2+2 and V 2+2 - Diamwood Platinum

Carbide-tipped toolholder for making rabbets, tenons and flats. Equipped with top and bottom levellers. Tool in two parts. Base body in light alloy. Diameter: 150 mm. Adjustable thickness: 14 to 28 mm. Bore : 30 mm. Number of carbide inserts : 4. Number of carbide shavers : 4. Dimensions of carbide inserts : 14 x 14 x 2 mm (4 cuts). Dimensions of carbide shavers : 14 x 14 x 2 mm (4 cuts). Speed of rotation : 5000 to 8000 rpm. Maximum length of tenons that can be produced: 59 mm. The inserts are held in place by M5 x 8 mm countersunk screws. Tool suitable for spindle moulders with mechanical feed (MEC). Supplied without intermediate rings. Diamwood PLATINUM products are top-of-the-range for professional and intensive use. This product is of high quality SWISS design and complies with current standards. Diamwood, expert in equipment for the construction industry, has been mastering tools and stationary machines for more than 15 years.

Data sheet

Type of product	Porte-outils à feuillurer et tenonner
Diameter	150
Bore	30
Thickness	14 à 28
Material	Alloy steel
Recommendation	Bois
Content	1
Toothing	Z 2+2 + V 2+2
Depth	59
Person responsible EU	PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr
WARNING and SAFETY	Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr
User manual	Présentation du produit : Le porte-outils de toupie Diamwood est conçu pour les professionnels du travail du bois, permettant la réalisation de feuillures et tenons avec précision. Ce produit, fabriqué en Suisse, est idéal pour une utilisation intensive. Utilité principale : Il permet de créer des feuillures et tenons de façon efficace grâce à ses plaquettes carbure. Caractéristiques principales : Diamètre de l'outil : 150 mm, Alésage : 30 mm, Épaisseur réglable : 14 à 28 mm, Longueur max des tenons : 59 mm, Vitesse recommandée : 5000 à 8000 tr/min, 4 plaquettes carbure et araseurs. Instructions d'utilisation : 1. Fixez le porte-outils sur la toupie. 2. Réglez l'épaisseur selon votre projet. 3. Adaptez la vitesse de rotation en fonction du bois à travailler. 4. Utilisez avec précaution pour des coupes précises. Précautions d'utilisation : Toujours porter des lunettes de sécurité, vérifier le serrage des vis, ne pas dépasser la vitesse recommandée. Entretien et nettoyage : Après utilisation, nettoyez le produit pour éviter l'accumulation de résidus. Vérifiez régulièrement l'état des plaquettes carbure pour un maintien de précision.
