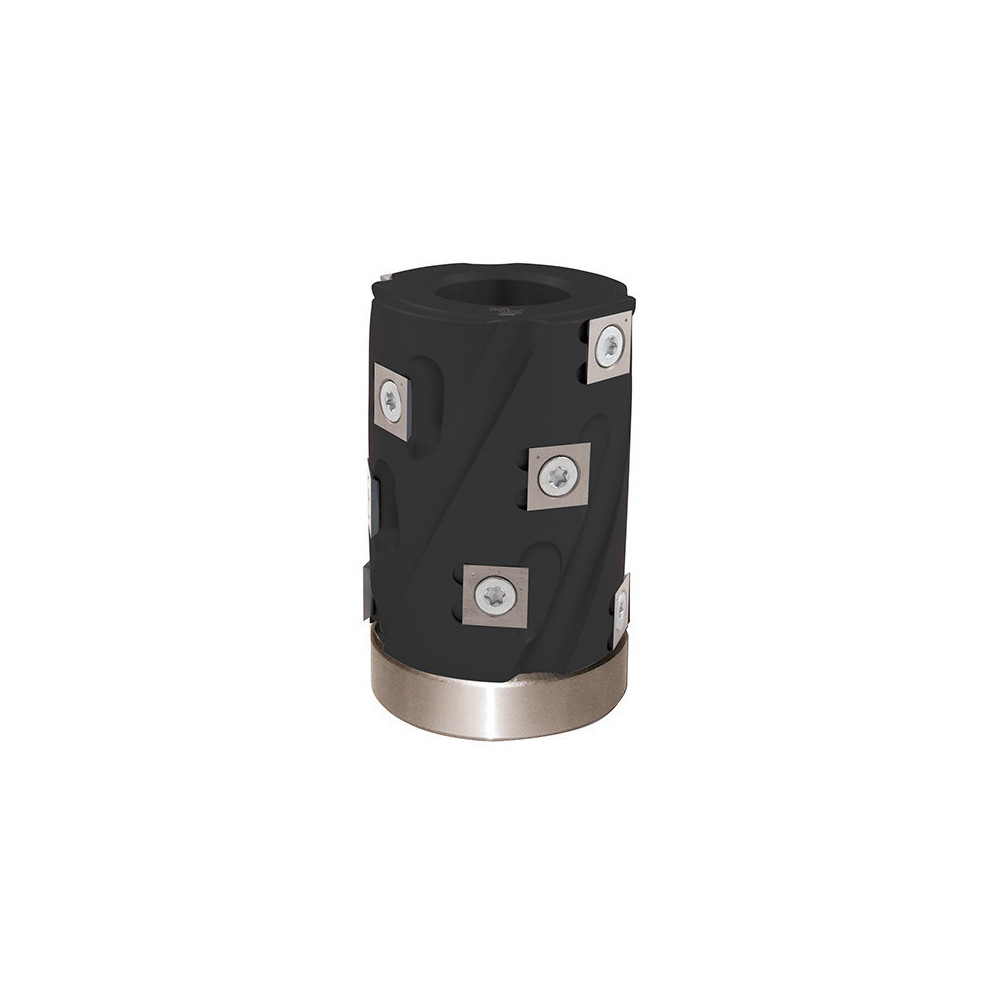

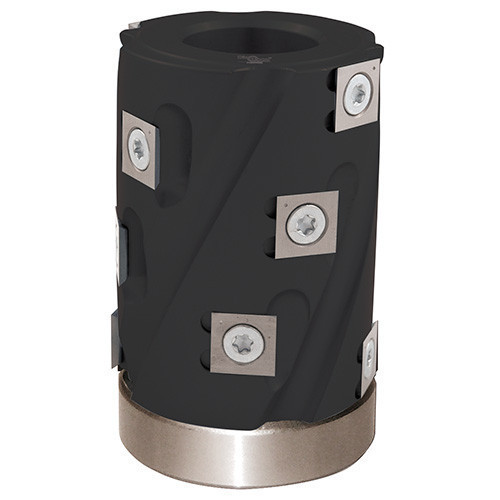

Spiral router tool holder D. 62 x Al. 30 x Ht. 80 mm Z 12 with bearing - Diamwood Platinum
Ref. DW-PLA477480003*Photos non contractuelles
En savoir + sur Spiral router tool holder D. 62 x Al. 30 x Ht. 80 mm Z 12 with bearing - Diamwood Platinum
Carbide-tipped toolholder with helical cut for more precise work and better chip evacuation. Ideal for sizing and facing curved parts on jigs. Light alloy base body. Diameter: 62 mm. Height: 80 mm. Bore : 30 mm. Number of carbide inserts : 12. Dimensions of carbide inserts : 14 x 14 x 2 mm (4 cuts). Speed of rotation : 8000 to 12 000 rpm. Anti-rejection shape, limited to chip thickness. Inserts held by M5 x 8 mm countersunk screws. Tool suitable for routers with manual feed (MAN). Supplied with bearing D. 62 x Al. 30 x Ht. 16 mm. Supplied with bearing D. 62 x Al. 30 x Ht. 16 mm. Diamwood PLATINUM products are top-of-the-range for professional and intensive use. This product is of high quality SWISS design and complies with current standards. Diamwood, expert in equipment for the building trade, has been mastering tools and stationary machines for over 15 years.
Data sheet
Type of product | Porte-outils hélicoïdal à calibrer |
Diameter | 62 |
Bore | 30 |
Height | 80 |
Material | Alloy steel |
Recommendation | Bois |
Content | 1 |
Toothing | Z 12 |
Person responsible EU | PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr |
WARNING and SAFETY | Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr |
User manual | Présentation du produit : Le porte-outils hélicoïdal à calibrer Diamwood est conçu pour un travail de précision grâce à sa conception en alliage léger et son système de plaquettes carbure. Utilité principale : Ce produit permet le calibrage et le dressage de pièces courbes sur gabarit, offrant une coupe optimale même à des vitesses élevées. Caractéristiques principales : - Diamètre : 62 mm - Alésage : 30 mm - Hauteur : 80 mm - Nombre de plaquettes carbure : 12 - Dimensions des plaquettes : 14 x 14 x 2 mm (4 coupes) - Vitesse de rotation : 8000 à 12000 tr/min - Corps en alliage léger - Roulement inclus : D. 62 x Al. 30 x Ht. 16 mm Instructions d'utilisation : 1. Assurez-vous que l'outil est bien fixé à la toupie. 2. Régler la profondeur de coupe selon vos besoins. 3. Démarrer la toupie et ajuster la vitesse de rotation. 4. Procéder au calibrage en douceur pour éviter l'accroche. Précautions d'utilisation : Ne pas dépasser les vitesses recommandées, porter des équipements de protection individuelle lors de l'utilisation. Entretien et nettoyage : Nettoyer régulièrement les plaquettes et le corps de l'outil pour prolonger sa durabilité. |
