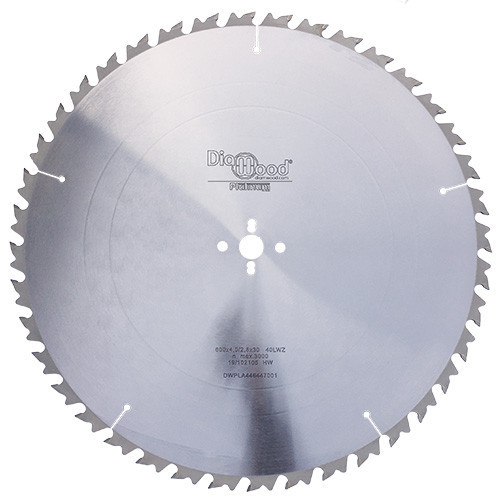

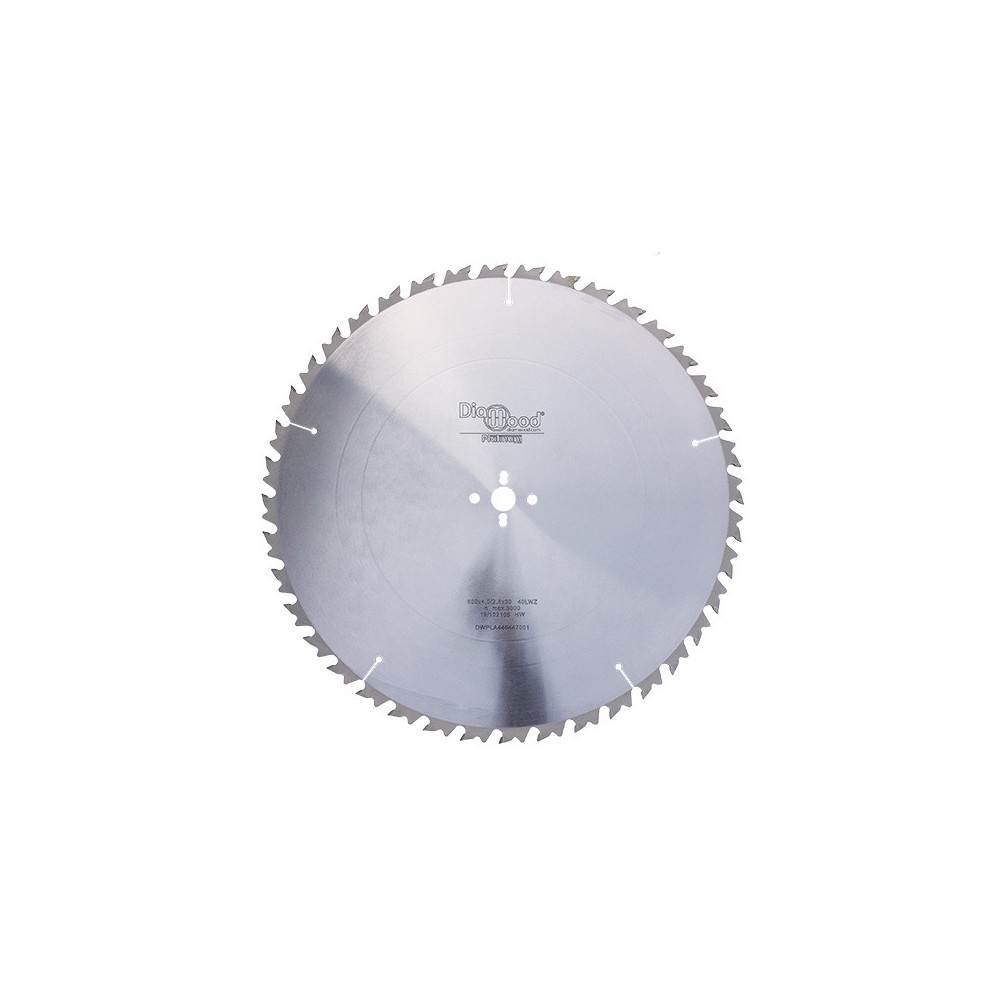

HM Circular Saw Blade D. 600 x Al. 30 x ép. 4 mm x Z40 Alt + AR - Diamwood
Ref. DW-PLA446447001En savoir + sur HM Circular Saw Blade D. 600 x Al. 30 x ép. 4 mm x Z40 Alt + AR - Diamwood

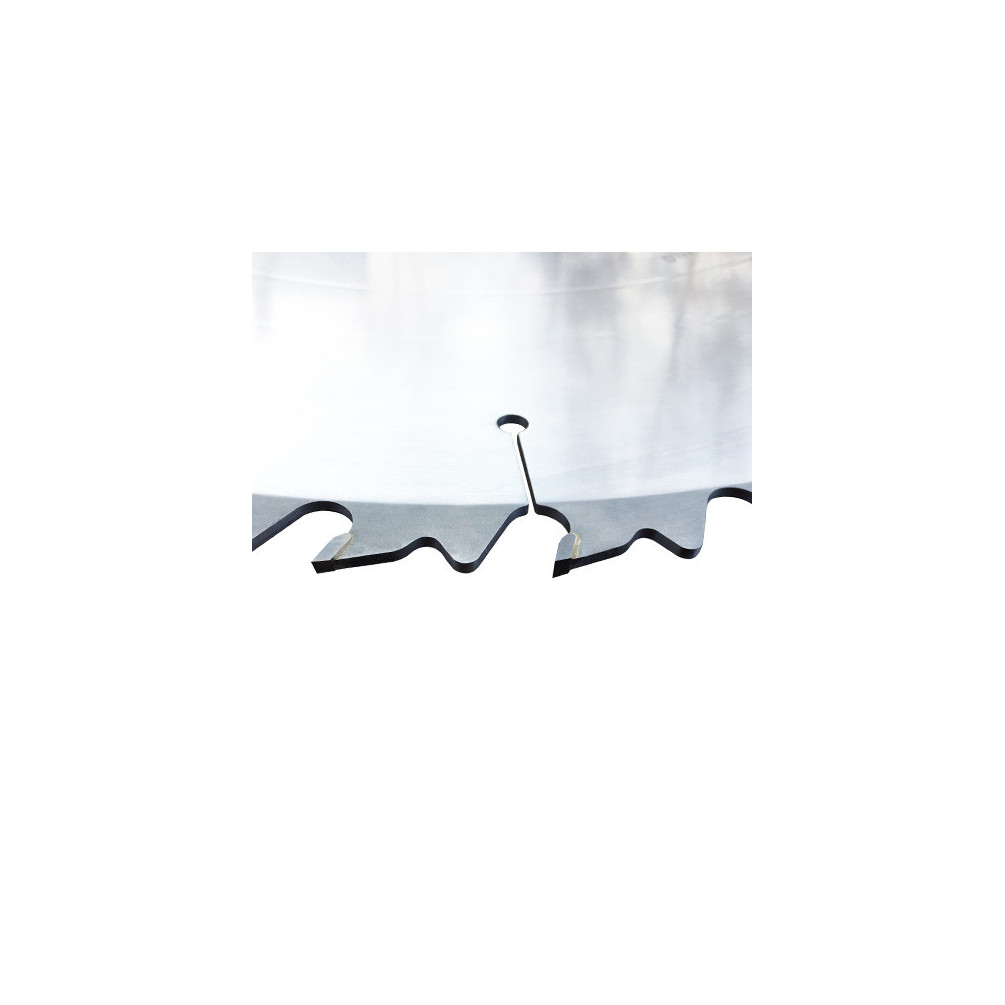

Discover our professional carbide circular saw blade, a must-have for efficient cutting of firewood and other types of natural wood. Designed for optimum performance, this blade features alternating teeth with a chip limiter, guaranteeing a recoil-free cutting experience, particularly suited to log-saw type machines, such as bench saws.
Technical specifications:
- Use: Throughput
- Diameter: 600 mm
- Bore: 30 mm
- Number of teeth: 40
- Tooth/pastille thickness: 4 mm
- Blade body thickness: 2.8 mm
- Lead angle: 20
- Clearance angle: 15
- Tooth type: Alternating 10
- Standard spur holes: 2/7/42 + 2/9/46.5 + 2/10/60 + 2/12/72 mm
- Max. rotation speed 3000 rpm
Diamwood products are renowned for their top quality, perfectly suited to professional and intensive use, while being offered at factory prices, eliminating the extra costs of intermediaries. Designed in Europe to the highest standards, our products meet the most stringent quality and safety requirements.
Put your trust in Diamwood, experts in equipment for the construction industry for over 15 years. Our in-depth knowledge of tools and stationary machines means we can offer you reliable, high-performance products that comply with current European standards. Use our products in complete safety, in compliance with the instructions and European standards relating to machinery. With Diamwood, you can be sure of getting professional, long-lasting results.
Data sheet
Type of product | Lame de scie criculaire |
Diameter | 600 |
Bore | 30 |
Thickness | 4 |
Material | Tungsten carbide |
Recommendation | Bois |
Content | 1 |
Toothing | Z 40 Alt + AR |
Person responsible EU | PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr |
WARNING and SAFETY | Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr |
User manual | Présentation du produit : La lame de scie circulaire carbure Diamwood mesure 600 mm de diamètre et est conçue pour un débit efficace du bois. Son utilisation principale est la coupe de bois de chauffage. Avantages : Conçue pour une performance maximale sans recul, elle est idéale pour les machines de type scie à bûche. Caractéristiques principales : - Diamètre : 600 mm - Alésage : 30 mm - Nombre de dents : 40 - Épaisseur dent/pastille : 4 mm - Angle d'attaque : 20° - Vitesse de rotation max. : 3000 tr/min. Instructions d'utilisation : 1. Assurez-vous que la machine est éteinte et débranchée avant d'installer la lame. 2. Installez la lame en respectant le sens de rotation indiqué. 3. Branchez et allumez la machine, puis commencez la coupe. Précautions d'utilisation : Portez des équipements de protection individuelle. Ne pas toucher la lame pendant son fonctionnement. Respectez les recommandations du fabricant de la machine. Entretien et nettoyage : Nettoyez régulièrement la lame après utilisation pour retirer les résidus de bois. Vérifiez l'état de la lame et affûtez-la si nécessaire pour maintenir une performance optimale. |
