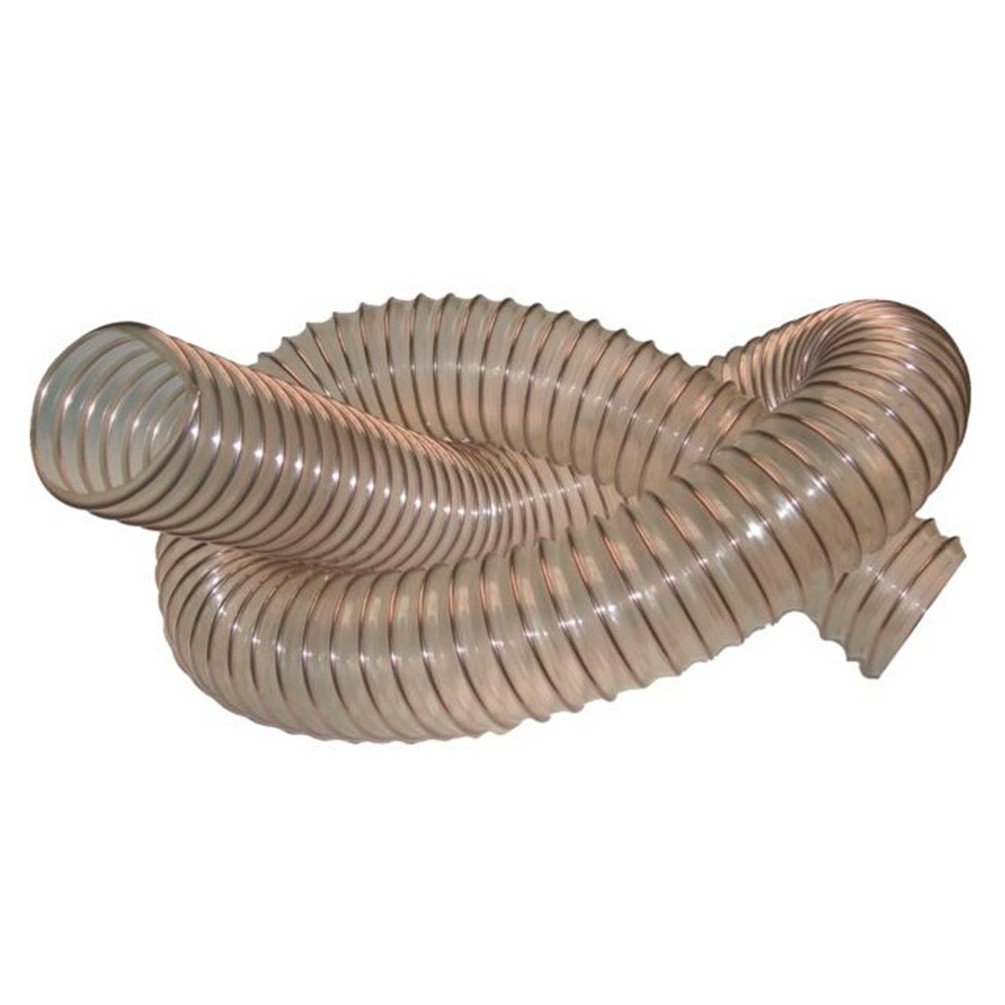

10 M flexible suction hose Joinery D. 120 mm copper-plated steel spiral PUR 1,4 mm - DW-257258009 - Diamwood
Ref. DW-257258009
En savoir + sur 10 M flexible suction hose Joinery D. 120 mm copper-plated steel spiral PUR 1,4 mm - DW-257258009 - Diamwood
Professional flexible hose to connect your machine to your vacuum system. Features: Smooth inside, good flexibility when cold, good resistance to oils and hydrocarbons, contains no halogens or plasticisers. Copper-plated steel spiral for earthing in accordance with BGR 132. The polyurethane liner used is food-safe in accordance with current CE and FDA standards, and is resistant to hydrolysis and microbial attack. Applications: Transport and suction of abrasive particles and granules at very high speed in the wood industry, metal and plastic processing, and urban hoovers. Diameter: 120 mm . Thickness : 1.4 mm. Length: 10 metres. Colour : Translucent. Temperature: - 30°C / + 100°C. Bending radius : 180 mm. Operating pressure: 0.90 Bar. Vacuum: 0,0,30 Bar. Flexible hose that meets current standards. Diamwood is an expert in equipment for the construction industry, and has been involved in tooling and stationary machines for over 15 years.
Data sheet
| Type of product | Tuyau d'aspiration |
| Diameter | 120 |
| Thickness | 1,4 |
| Length | 10000 |
| Material | Polyuréthane |
| Recommendation | Copeaux de bois |
| Content | 1 |
| Person responsible EU | PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr |

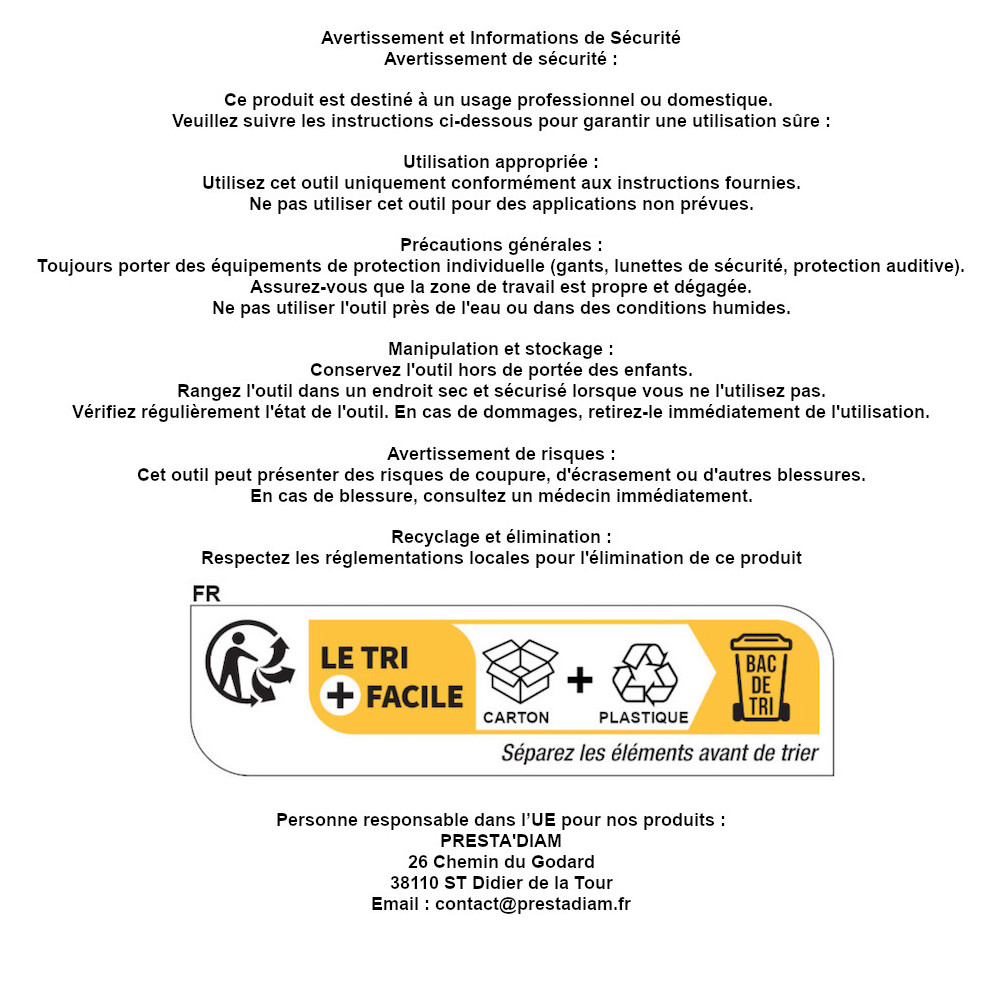

| WARNING and SAFETY | Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr |
| User manual | Présentation du produit : Le tuyau flexible d'aspiration Diamwood de 120 mm de diamètre est un outil essentiel pour raccorder vos machines à un système d'aspiration. Son utilisation principale est de permettre l'aspiration efficace des particules dans les métiers du BTP, optimal pour la menuiserie et l'industrie. Caractéristiques principales : - Diamètre : 120 mm - Longueur : 10 m - Épaisseur : 1,4 mm - Température d'utilisation : de -30°C à +100°C - R de courbure : 180 mm - Pression de service : 0,90 Bar - Dépression : 0,30 Bar - Couleur : Translucide - Norme CE et FDA, sans halogène ni plastifiant. Instructions d'utilisation : 1. Connecter le tuyau flexible à la machine et au système d'aspiration. 2. Assurer une position de tuyau sans courbures excessives pour un flux d'air optimal. 3. Démarrer votre machine d'aspiration. Précautions d'utilisation : - Ne pas exposer le tuyau à des températures excédent les limites spécifiques. - Vérifier régulièrement pour s'assurer qu'il n'y a pas de fissures ou de dommages. Entretien et nettoyage : - Nettoyer le tuyau avec de l'eau tiède et un savon doux si nécessaire. - Vérifiez les connexions pour assurer une bonne étanchéité. |
