Screw pin shackle CU: 3250 Kg 5/8 high resistance coefficient 5.1 in galvanised steel D-Work

Ref. DK-1861000000

‹ Revenir à la catégorie

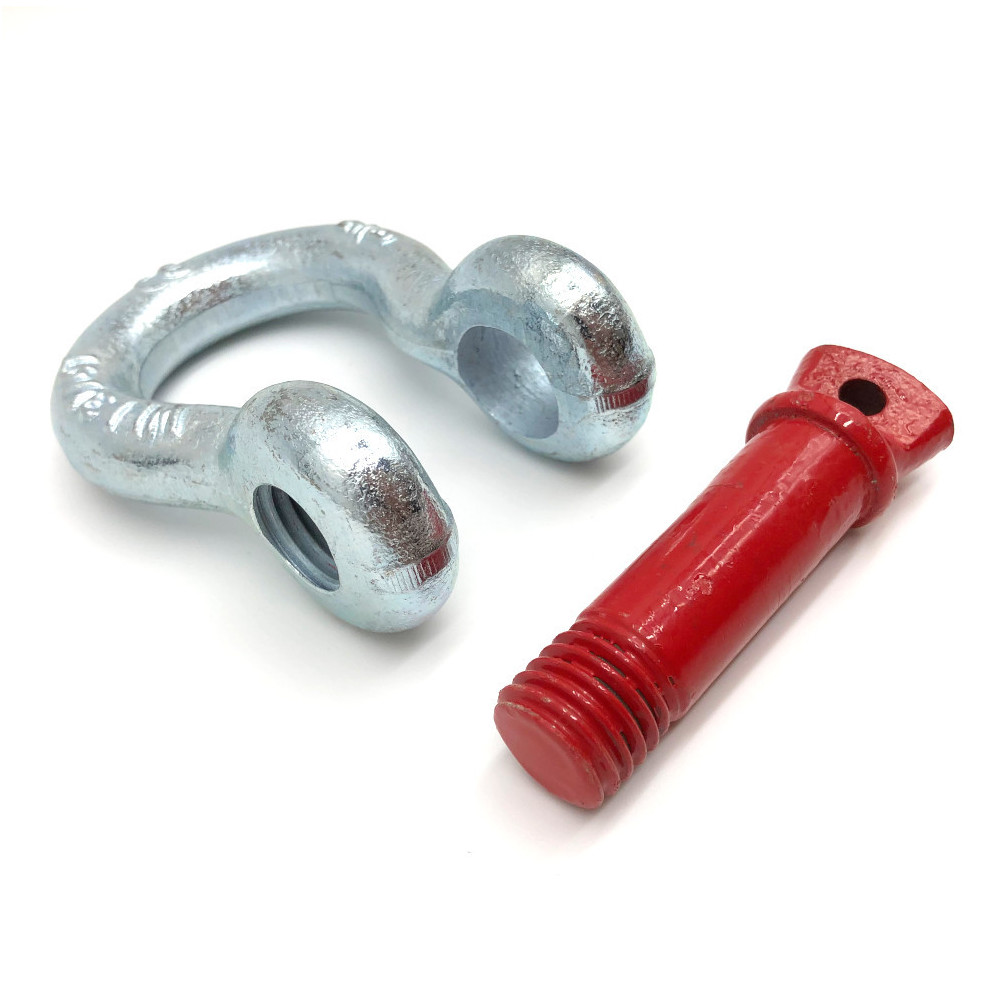

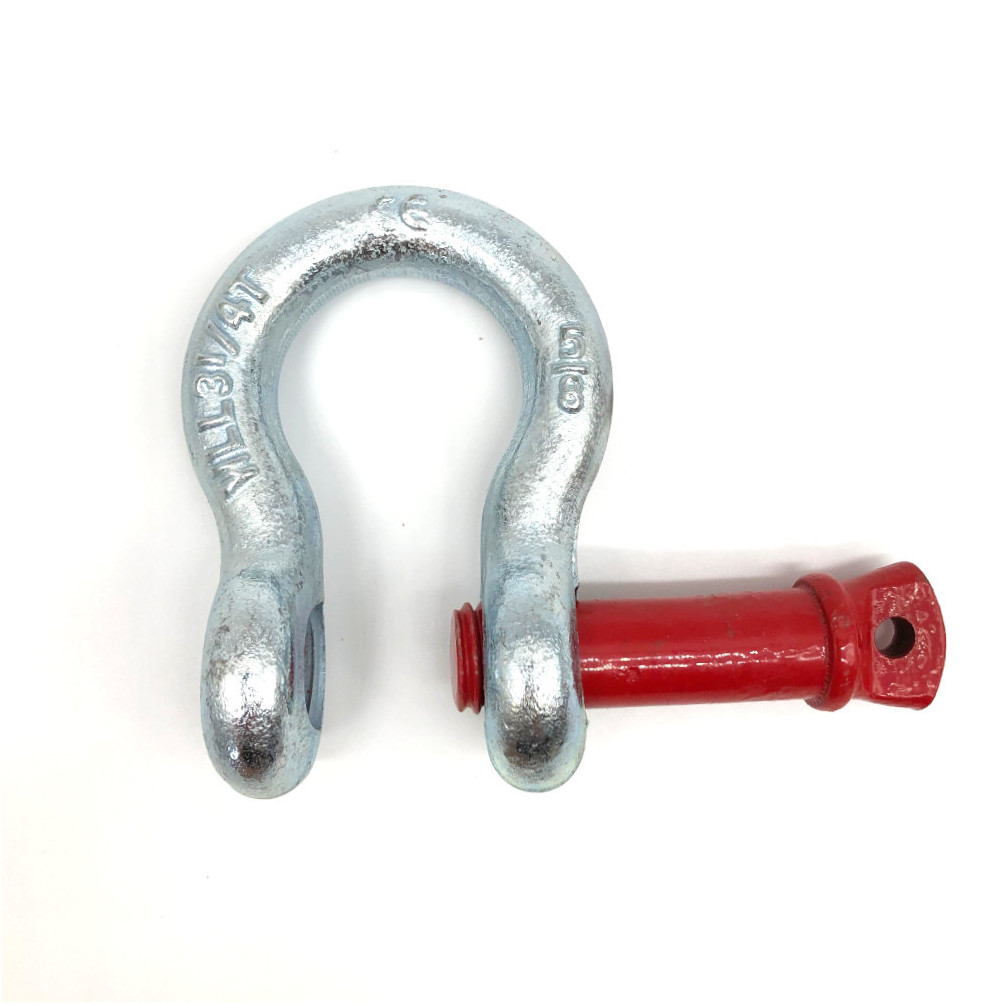

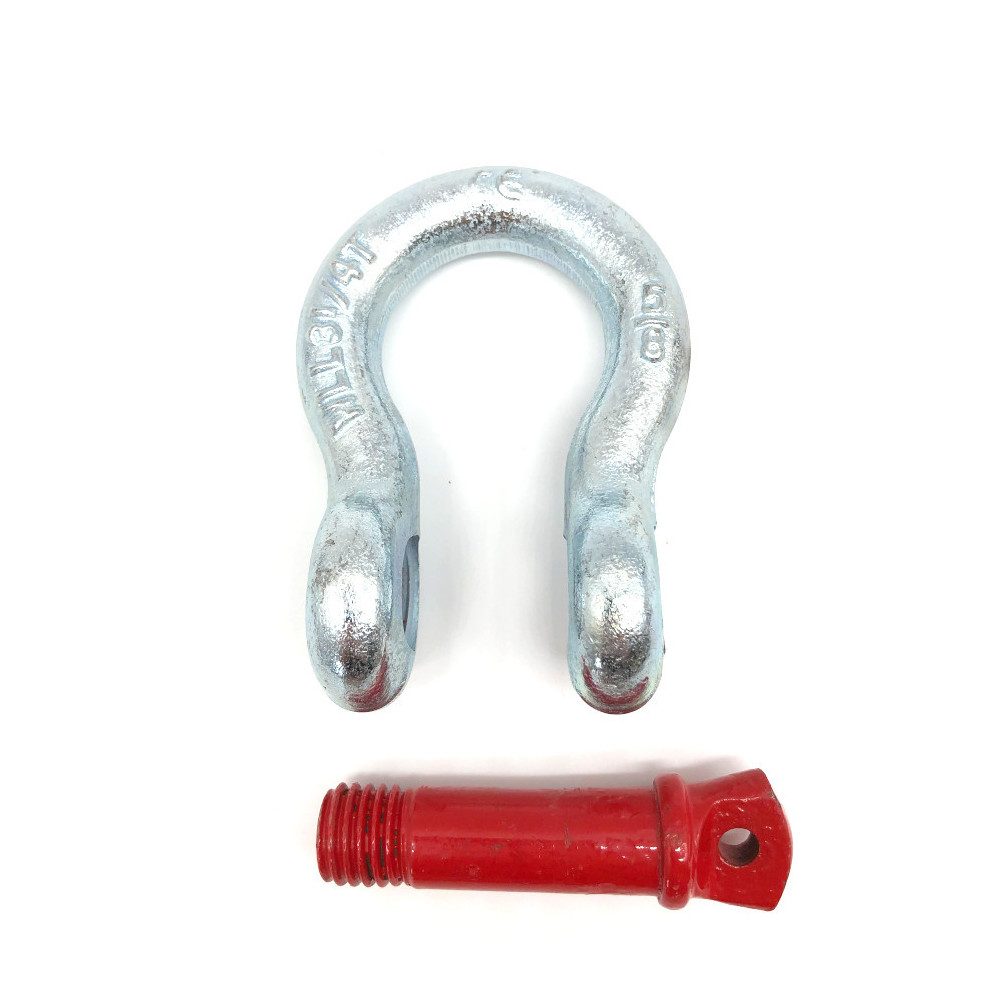

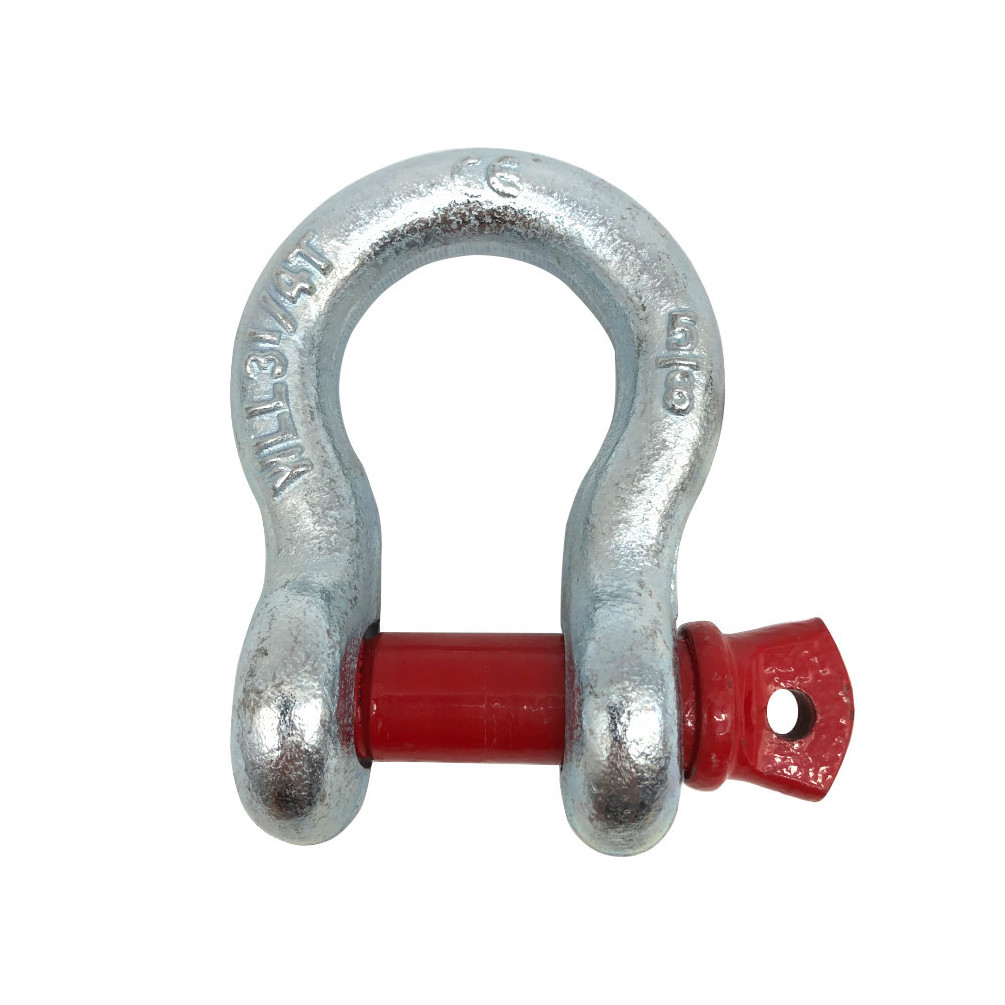

Screw pin shackle CU: 3250 Kg 5/8 high resistance coefficient 5.1 in galvanised steel Cobaltix

View larger

*Photos non contractuelles

Partager ce produit

En savoir + sur Screw pin shackle CU: 3250 Kg 5/8 high resistance coefficient 5.1 in galvanised steel D-Work

A shackle is used to connect, usually temporarily, a rope or chain to objects that need to be pulled vertically or horizontally. The connection can be made directly to the object, if it has a ring, or via a rope, sling, strap or chain attached to the object. This high-strength product meets current standards with a 5:1 safety coefficient.

Maximum working load: 3.25 tonnes.

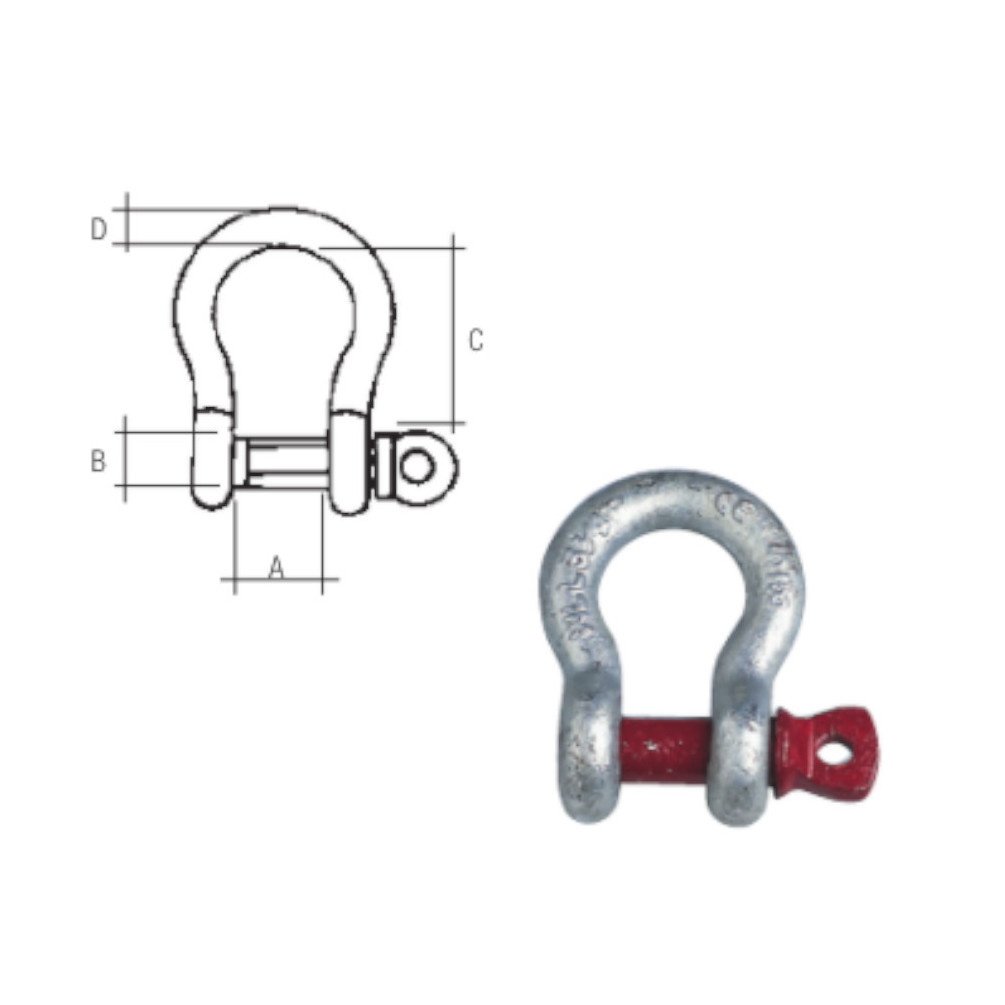

A dimensions: 27 mm.
B dimensions: 19 mm.
Dimensions C : 61 mm.
Dimensions D : 16 mm.
Net weight : 0,59 Kg.
Material : Galvanised steel
Bolt hole diameter : 7 mm

Our colours may vary slightly from those shown, depending on availability.

D-Work:

D-Work products are top-of-the-range for intensive use. This product complies with current standards, all at factory prices to avoid intermediaries. Find more products under the D-Work brand.

Data sheet

Type of product	Manille
Material	Acier galvanisé
Content	1
Maximum load	3520 kg
Person responsible EU	PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr
WARNING and SAFETY	Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr
User manual	Présentation du produit : La manille lyre à axe vissé D-Work est conçue pour relier ou assembler temporairement un cordage ou une chaîne avec des objets, permettant une traction sécurisée. Utilité principale : Sa robustesse et sa conception en acier galvanisé en font un choix idéal pour des applications de levage où la sécurité est primordiale. Caractéristiques principales : - Charge Maximale d'Utilisation (CMU) : 3250 Kg - Dimensions : 27 mm (largeur) x 19 mm (épaisseur) x 61 mm (longueur) - Épaisseur : 16 mm - Poids : 0,59 Kg - Diamètre du trou de l'axe : 7 mm Instructions d’utilisation : 1. Vérifiez que la manille est adaptée à la charge à soulever. 2. Fixez la manille en vissant l’axe dans l’anneau d’accroche ou sur le cordage. 3. Assurez-vous que la manille est bien verrouillée avant utilisation. 4. Testez la solidité de l’assemblage avant de soulever la charge. Précautions d’utilisation : - Ne dépassez pas la charge maximale spécifiée. - Inspectez régulièrement la manille pour détecter toute usure ou dommage. - Évitez d'utiliser la manille dans des conditions extrêmes qui pourraient altérer son efficacité. Entretien et nettoyage : - Nettoyez la manille avec de l'eau claire pour enlever toute saleté ou débris. - Vérifiez régulièrement l'état de galvanisation pour prévenir la corrosion.
