Reversible carbide insert K05 2 cuts 30 x 12 x 1.5 mm 35° - Diamwood

Ref. DW-12721273002

‹ Revenir à la catégorie

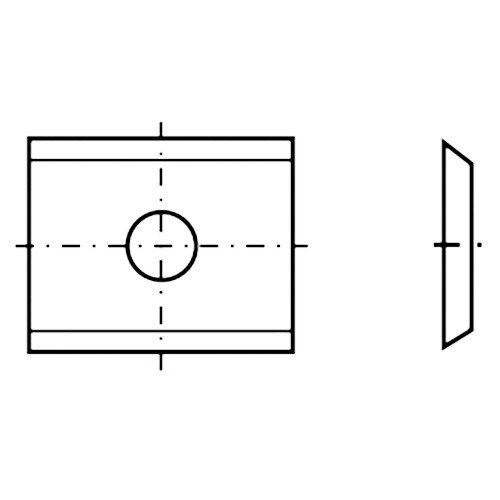

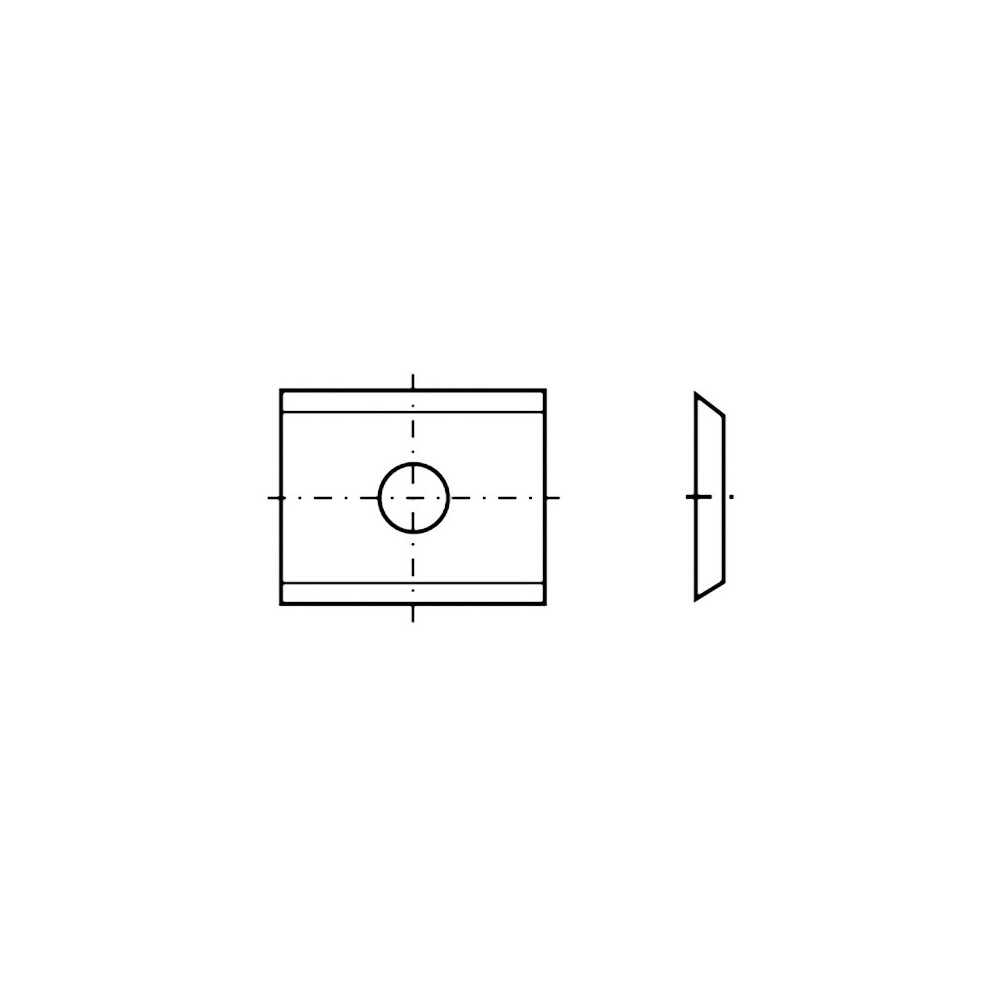

Reversible carbide insert K05 2 cuts 30 x 12 x 1.5 mm 35° - Diamwood

View larger

*Photos non contractuelles

Partager ce produit

En savoir + sur Reversible carbide insert K05 2 cuts 30 x 12 x 1.5 mm 35° - Diamwood

Carbide insert suitable for all tool holders requiring a 30 x 12 x 1.5 mm cutting edge. Applications: Plastic, wood, panels. Grade: Standard ISO K05 carbide. Grain size: 1, 1.4 (um). Toughness: 8.6 K1C/Mpa.m-1/2. Flexural strength: 2350 Nmm2. Hardness: 92.8 HV 10. Binder: 4%. Number of cuts: 2. Cutting angle: 35°. Bore for clamping screw (d): 2 holes of 6.5 mm. Hole centre distance: 14 mm. Sold individually or in packs of 10. Other profiles and grades on request. Made in Europe. Diamwood is an expert in equipment for the construction industry, and has been mastering tooling and stationary machines for over 15 years.

Data sheet

Person responsible EU	PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr
WARNING and SAFETY	Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr
User manual	Présentation du produit : La plaquette réversible carbure K05 2 coupes de Diamwood est conçue pour offrir un tranchant précis et durable dans le travail du bois et des plastiques. Son utilisation principale est idéale pour les professionnels du BTP. Caractéristiques principales : - Dimensions : 30 x 12 x 1,5 mm - Nombre de coupes : 2 - Angle de coupe : 35° - Nuance : Carbure standard ISO K05 - Dureté : 92,8 HV 10 - Résistance à la flexion : 2350 Nmm2 Instructions d'utilisation : 1. Assurez-vous que votre porte-outil est compatible avec la plaquette. 2. Insérez la plaquette dans le porte-outil en vous assurant qu'elle est correctement positionnée. 3. Serrez les vis de fixation à l'aide d'un outil approprié. 4. Effectuez votre travail d'usinage sur le matériau souhaité (bois, plastique, panneaux). Précautions d’utilisation : - Portez des équipements de protection individuelle appropriés. - Vérifiez régulièrement l’état de la plaquette pour prévenir tout risque d’éclatement. Entretien et nettoyage : - Nettoyez régulièrement la plaquette pour enlever les résidus. - Entreposez-la dans un endroit sec et à l'abri de l'humidité pour préserver sa durabilité.
