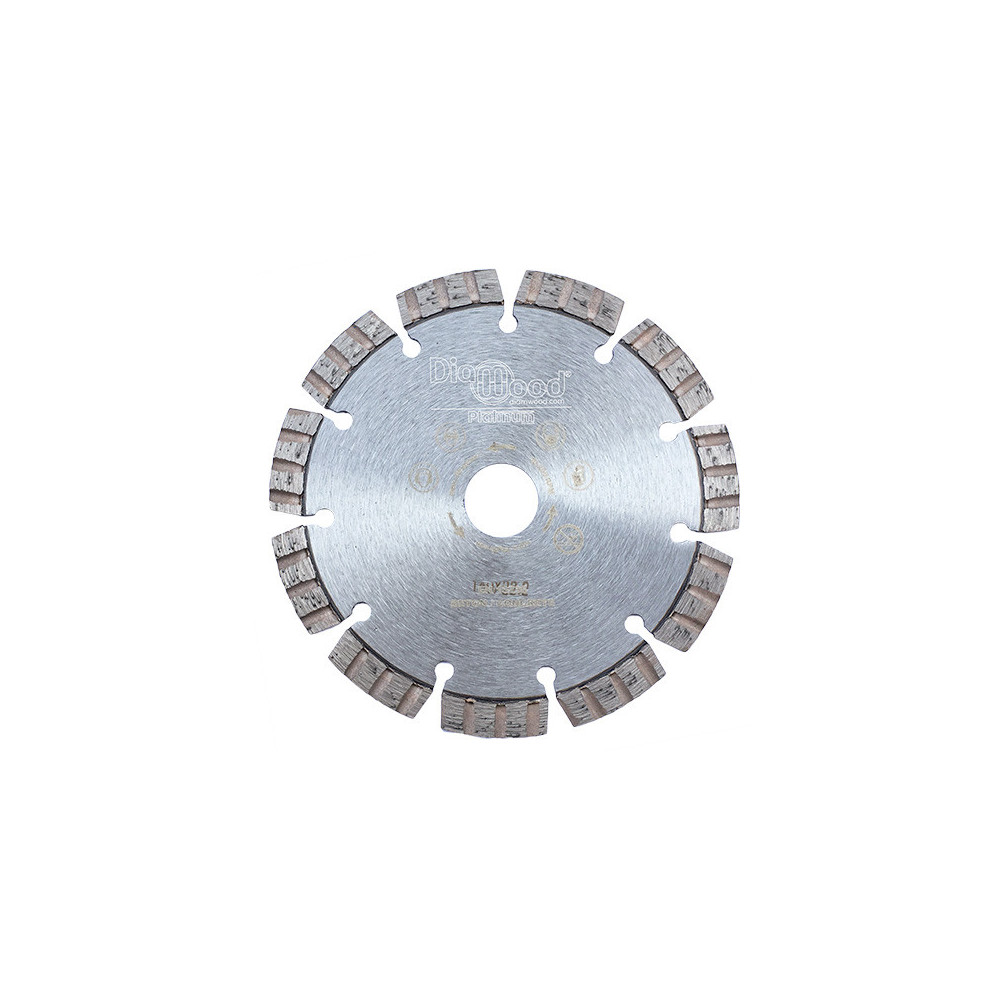

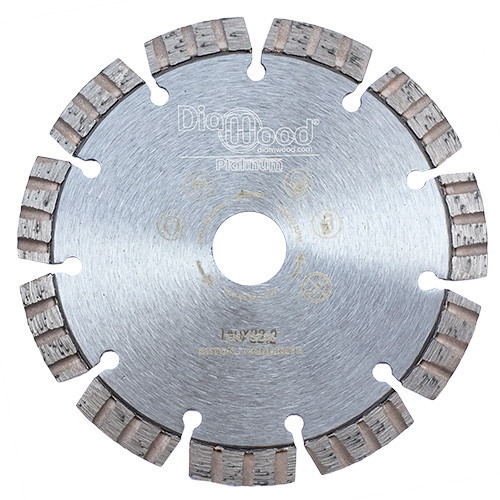

Diamond Disc Pro ODIN D. 140 x Al. 22,23 x Ht. 10 mm - Reinforced Concrete, Granite, Building Materials - Diamwood

Diamwood's top-of-the-range turbo laser-welded segment disc is designed to meet the most demanding requirements of construction and civil engineering professionals. Featuring a ventilated body for optimum cooling during use, this disc guarantees exceptional performance and long life.

Benefits :

• Ventilated body for optimum cooling
• High cutting speed
• Long service life
• Can be used dry or with water

Technical specifications:

• Suitable for grooving machines
• Can be used on a variety of building materials: reinforced concrete, steel, granite, natural stone, concrete, breeze block, brick, aerated concrete, clinker and others
• Disc diameter: 125 mm
• Disc bore: 22.23 mm
• Segment height: 10 mm
• Segment thickness: 2.3 mm
• Maximum feed speed: 80 M/S up to diameter 230 mm, 100 M/S for other diameters

Maximum rotation speed depending on diameter :

• 15,300 rpm for 100 mm
• 13,300 rpm for 115 mm
• 12,250 rpm for 125 mm
• 10,930 rpm for 140 mm
• 10,200 rpm for 150 mm
• 8,500 rpm for 180 mm
• 7 650 rpm for 200 mm
• 6 650 rpm for 230 mm
• 6,100 rpm for 250 mm
• 6,400 rpm for 300 mm
• 5,500 rpm for 350 mm
• 4,800 rpm for 400 mm
• 4,250 rpm for 450 mm
• 3 900 T/min for 500 mm

Why Choose Diamwood: Diamwood products are renowned for their superior quality, perfectly suited to professional and intensive use. With top-of-the-range European design, specifically from Germany, and compliance with current EN 13236 standards, you benefit from reliability unmatched on the market.

Diamwood Expert: As an expert in equipment for the construction industry, Diamwood has been mastering tools and stationary machines for over 15 years. With direct factory prices, cut out the middleman and get the best quality at the best price. Use our products in complete safety, in accordance with current safety instructions and European standards.
