Diamond Disc Pro KATANA D. 180 x Al. 22,23 x Ht. 7 x Ép. 1,7 mm - Porcelain stoneware, Granite, Marble - Diamwood

Ref. DW-PLA381384007
‹ Revenir à la catégorie

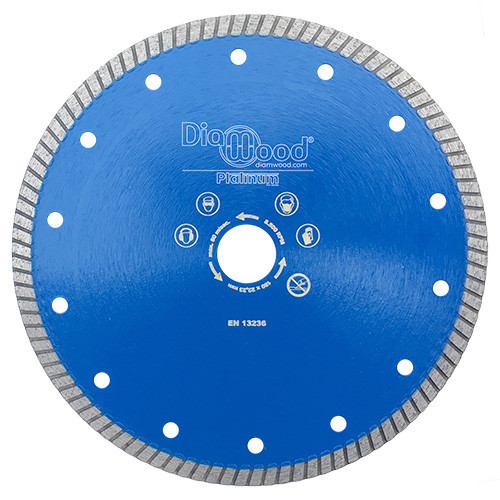

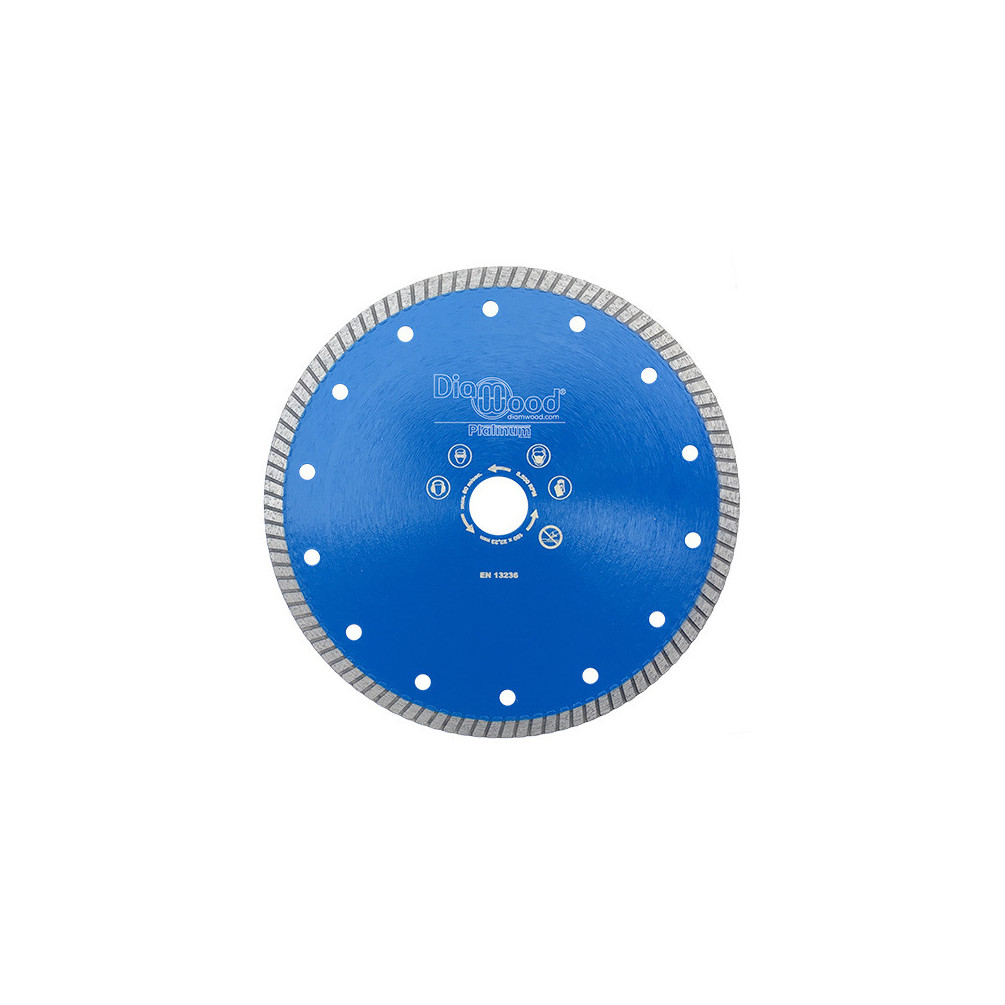

Diamond disc pro KATANA D. 180 x Al. 22,23 x Ht. 7 x ép. 1,7 mm - porcelain stoneware, granite, marble - Diamwood Platinum View larger

*Photos non contractuelles

J'achète
En savoir +
Diamond disc for tiles / porcelain stoneware / marble DIAMWOOD EXPERT EN EQUIPEMENT

89,10€ tax incl.

74,25€tax excl.

Partager ce produit

En savoir + sur Diamond Disc Pro KATANA D. 180 x Al. 22,23 x Ht. 7 x Ép. 1,7 mm - Porcelain stoneware, Granite, Marble - Diamwood

Discover Diamwood's turbo-fluted Diamond Disc with continuous rim, a revolutionary tool designed to meet the most demanding requirements of construction professionals. With its high cutting speed and ability to produce clean cuts, this disc is the essential element for any project involving the cutting of hard materials.

Technical specifications:

  • High cutting speed for maximum efficiency on site.
  • Ventilated body for optimum cooling, extending disc life.
  • Versatile use: whether dry or wet, this disc adapts to all working conditions.
  • Machine compatibility: ideal for electric tile cutters and table saws.

Applications: This disc is suitable for a multitude of materials, including porcelain stoneware, porcelanico, granite, marble, natural stone, ceramics, fibreglass, slate and earthenware.

Target users: Tilers as well as building and civil engineering professionals will find this disc an invaluable ally for their most demanding jobs.

Technical specifications:

  • Disc diameter: 180 mm
  • Disc bore: 22.23 mm
  • Segment height: 7 mm
  • Diamond rim thickness: 1.7 mm
  • Maximum feed speed: 80 M/S up to diameter 230 mm and 100 M/S for other diameters.
  • Maximum rotation speed :
    • 15,300 rpm for D.100 mm
    • 13,300 rpm for diameter 115 mm
    • 12,250 rpm for D.125 mm
    • 10,930 rpm for D. 140 mm
    • 10,200 rpm for D. 150 mm
    • 8,500 rpm for D. 180 mm
    • 7,650 rpm for D. 200 mm
    • 6 650 rpm for D. 230 mm
    • 6,100 rpm for D. 250 mm
    • 6,400 rpm for D. 300 mm
    • 5,500 rpm for D. 350 mm
    • 4,800 rpm for D. 400 mm
    • 4,250 rpm for D. 450 mm
    • 3,900 rpm for D. 500 mm

Diamwood products are renowned for their top quality, suitable for intensive professional use, and available at factory prices, eliminating the middleman so you can benefit from the best prices.

Quality standards: This product is the result of high-quality European design, manufactured in Germany and complying with current EN 13236 standards. We recommend that you use it in compliance with safety instructions and current European standards for machinery.

Put your trust in Diamwood, experts in equipment for the construction industry, with over 15 years' experience in tools and stationary machines.

Data sheet

Type of product Disque diamant
Diameter 180
Bore 22,23
Height 7
Mounting 1,7
Material Acier
Recommendation Grès cérame
Content 1
Person responsible EU PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr
WARNING and SAFETY Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr
User manual Présentation du produit : Le Disque Diamant Pro Diamwood est conçu pour les professionnels du BTP, adapté aux coupes de matériaux durs comme le grès cérame et le granite. Utilité principale : Ce disque diamant offre une grande efficacité de coupe grâce à sa vitesse élevée et à son corps ventilé, garantissant un refroidissement optimal et une durabilité accrue. Caractéristiques principales : - Diamètre du disque : 180 mm - Alésage : 22,23 mm - Hauteur des segments : 7 mm - Épaisseur : 1,7 mm - Vitesse d'avance maximale : 80 M/S - Vitesse de rotation : jusqu'à 8 500 T/min. Instructions d’utilisation : 1. Vérifiez la compatibilité du disque avec votre outil. 2. Installez le disque sur la machine en suivant les instructions du fabricant. 3. Utilisez le disque en veillant à respecter la vitesse maximale recommandée. 4. Privilégiez une utilisation à eau pour un meilleur refroidissement et une meilleures finitions. Précautions d’utilisation : - Portez des équipements de protection individuelle (gants, lunettes). - Ne jamais dépasser la vitesse de rotation recommandée. - Vérifiez régulièrement l’état du disque pour éviter les accidents. Entretien et nettoyage : Pour prolonger la vie du disque, nettoyez-le après chaque usage et assurez-vous qu'il ne présente aucun dommage avant utilisation.
