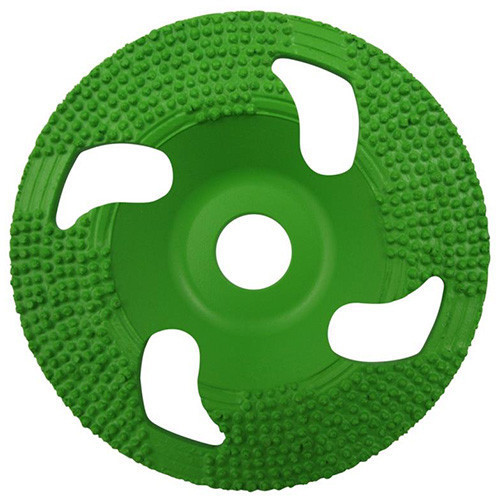

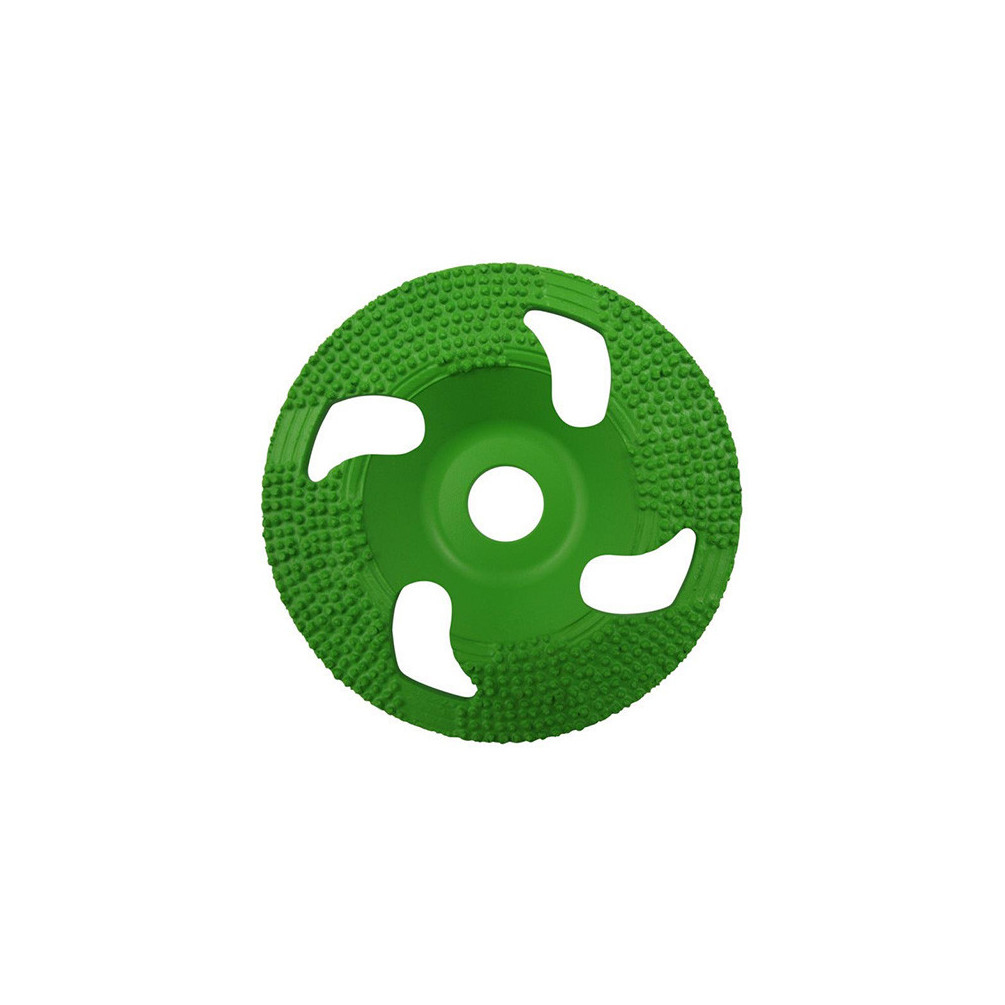

Vacuum brazed sanding pad BIG GREEN GRINDER D.180 x Al. 22,23 mm - Glue, varnish, epoxy - Diamwood Platinum

Ref. DW-PLA381387014
Vacuum brazed sanding pad BIG GREEN GRINDER D.180 x Al. 22,23 mm - Glue, varnish, epoxy - Diamwood Platinum View larger

*Photos non contractuelles

J'achète
En savoir +
Diamond faceplate DIAMWOOD EXPERT EN EQUIPEMENT

391,10€ tax incl.

325,92€tax excl.

Partager ce produit

En savoir + sur Vacuum brazed sanding pad BIG GREEN GRINDER D.180 x Al. 22,23 mm - Glue, varnish, epoxy - Diamwood Platinum

The BIG GREEN GRINDER diamond sanding pad has a long service life thanks to its vacuum brazed technology. Very fast grinding with groove-free results. Quiet sandwich plate. Dust extraction holes. Do not use on surfaces with nails or other fasteners, not suitable for metal materials. Can be used wet or dry. Suitable for use with: Grinders, disc sanders and surfacers. Use: Glue, varnish, epoxy on concrete or wood, paint, resin, thermoplastic materials. Uses: Fitters, bricklayers and other construction trades. Disc diameter: 180 mm. Disc bore: 22.23 mm. Total disc thickness: 28 mm. Maximum feed speed: 80 M/S up to D. 230 mm and 100 M/S for other diameters. Maximum rotation speed: 15,300 rpm for D.100 mm, 13,300 rpm for D. 115 mm, 12,250 rpm for D.125 mm, 10,930 rpm for D. 140 mm, 10,200 rpm for D. 150 mm, 8,500 rpm for D. 180 mm, 7,650 rpm for 200 mm, 6,650 rpm for D.230 mm, 6,100 rpm for 250 mm, 6,400 rpm for D. 300 mm, 5,500 rpm for D. 350 mm, 4,800 rpm for D. 400 mm, 4,250 rpm for D. 450 mm, and 3,900 rpm for D. 500 mm. Diamwood PLATINUM products are top-of-the-range for professional and intensive use, all at factory prices to cut out the middleman. This product is of high quality European design (Germany) and complies with current standards (EN 13236). Use this product in accordance with the safety instructions and European machine standards in force. Diamwood is an expert in equipment for the building and civil engineering trades and has been dealing with tools and stationary machines for over 15 years.

Data sheet

Status 2
Type of product Plateau de surfaçage VB
Diameter 180
Bore 22,23
Material Acier
Recommendation Epoxy
Content 1
Country of origin DE
Person responsible EU PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr
WARNING and SAFETY Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr
User manual Présentation du produit : Le plateau diamanté à poncer BIG GREEN GRINDER est conçu pour offrir une performance exceptionnelle et une durabilité accrue grâce à sa technologie vacuum brazed. Utilité principale : Ce plateau est parfait pour le meulage de colles, vernis et époxys, offrant des résultats rapides sans rainures indésirables. Caractéristiques principales : Diamètre du disque : 180 mm, Alésage : 22,23 mm, Épaisseur : 28 mm. Vitesse d'avance maxi : 80 M/S jusqu'au D. 230 mm. Instructions d'utilisation : Montez le disque sur une machine compatible (meuleuse, disqueuse ou surfasseuse), veillez à respecter les directives de sécurité. Pour un meulage optimal, utilisez de l'eau ou poncez à sec. Précautions d'utilisation : Ne pas utiliser sur des surfaces avec des clous ou autres fixations. Bien respecter les vitesses recommandées. Entretien et nettoyage : Après utilisation, nettoyez le disque pour enlever les résidus. Rangez-le dans un endroit sec pour préserver sa durabilité.
new Diamwood Plateau à poncer vacuum brazed avec technologie de meulage - D.180 mm - Alésage 22,23 mm - Épaisseur 28 mm - Usage colle, vernis, époxy - Idéal pour le béton et le bois
new Diamwood Plateau à poncer vacuum brazed avec technologie de meulage - D.180 mm - Alésage 22,23 mm - Épaisseur 28 mm - Colle, vernis, époxy - Conception Européenne haute qualité
new Diamwood Plateau à poncer vacuum brazed D.180 mm - Épaisseur 28 mm - Usage colle, vernis, époxy - Pour béton et bois
KEYWORDS Diamwood, plateau à poncer, disque diamant, meulage, colle, vernis, époxy, béton, bois, équipement BTP, disque abrasif, technologie vacuum brazed
new ✅ PLATEAU DIAMANTÉ DURABLE : Technologie vacuum brazed pour une longue durée de vie et un meulage sans rainure. Idéal pour les professionnels.
new ✅ USAGE POLYVALENT : Convient pour la colle, le vernis et l'époxy sur béton ou bois. Idéal pour le BTP et les métiers d'agencement.
new ✅ EFFICACITÉ OPTIMALE : Meulage rapide avec trous d'évacuation pour réduire la poussière. Utilisation à eau ou à sec, versatile.
new ✅ RESPECT DES NORMES : Produit haute qualité répondant aux normes EN 13236, conçu pour une utilisation intensive dans le secteur du BTP.
new ✅ FACILITÉ D'UTILISATION : Compatible avec meuleuses, disqueuses et surfasseuses, pour un usage professionnel efficace et sécurisé.
