Tungsten Carbide Sanding Pad GOLD GRINDER D.125 mm x Al. 22,23 mm x Gr. 12 - Glue, Varnish, PVC - Diamwood
Ref. DW-381387004*Photos non contractuelles
En savoir + sur Tungsten Carbide Sanding Pad GOLD GRINDER D.125 mm x Al. 22,23 mm x Gr. 12 - Glue, Varnish, PVC - Diamwood

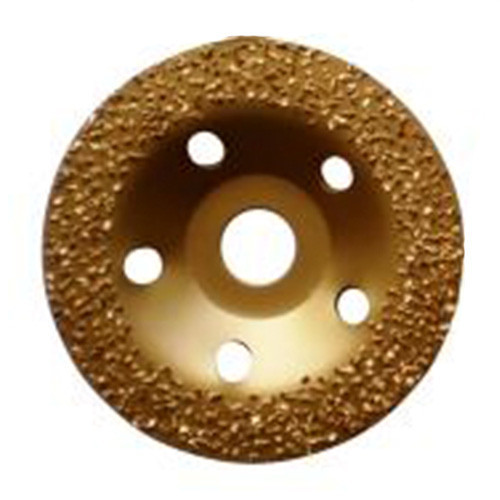

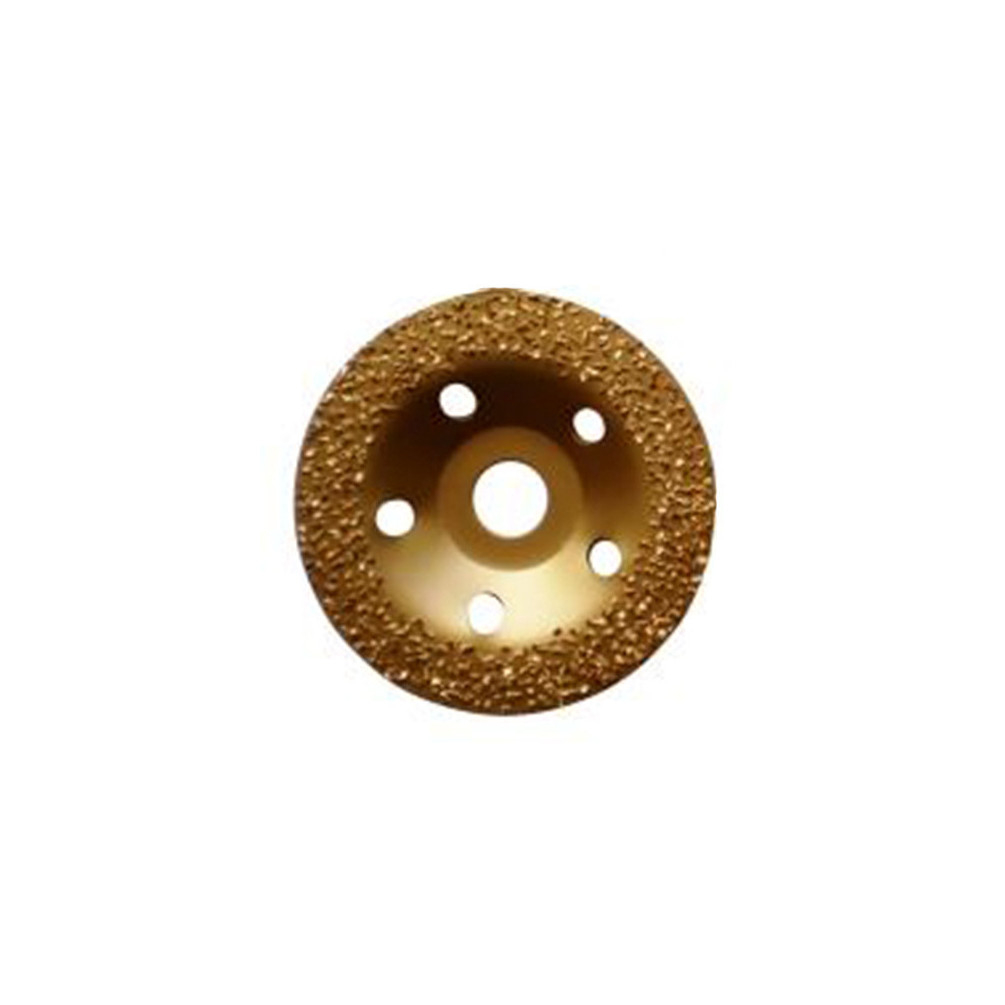

GOLD GRINDER Tungsten Carbide Sanding Pad
The GOLD GRINDER Tungsten Carbide Sanding Pad is your go-to solution for efficient removal of concrete and adhesive residues, offering optimum versatility thanks to its dry or wet cutting capability. Designed for compatibility with a variety of machines such as grinders, discers and surfacers, this plate guarantees exceptional performance in a wide range of applications.
Technical specifications :
- Versatile use: Suitable for concrete, aerated concrete, limestone, plaster, paint, glue, plastic, fibreglass, composite materials, PVC, varnish and resin.
- Suitable for bricklayers, electricians, plasterers and other professionals.
- Disc diameter: 125 mm.
- Disc bore: 22.23 mm.
- Grain size: 12 (medium).
Performance :
- Maximum feed speed: 80 M/S up to diameter 230 mm and 100 M/S for other diameters.
- Maximum rotation speed
- 15,300 T/min for 100 mm discs,
- 13,300 rpm for 115 mm discs,
- 12,250 rpm for 125 mm discs,
- 10,930 rpm for 140 mm discs,
- 10,200 rpm for 150 mm discs,
- 8,500 rpm for 180 mm discs,
- 7,650 rpm for 200 mm discs,
- 6,650 rpm for 230 mm discs,
- 6,100 rpm for 250 mm discs,
- 6,400 rpm for 300 mm discs,
- 5,500 rpm for 350 mm discs,
- 4,800 rpm for 400 mm discs,
- 4,250 rpm for 450 mm discs,
- 3,900 rpm for 500 mm discs.
Quality and safety: This product, of European origin (Germany), complies with current standards (EN 13236), guaranteeing quality and safety in line with the most demanding standards. What's more, its factory price cuts out the middleman, giving you excellent value for money.
Diamwood Expert commitment: As an expert in equipment for the construction industry for over 15 years, Diamwood Expert offers you total expertise in tools and stationary machines. Use this product with complete confidence, respecting safety instructions and current European standards, for impeccable results on your building sites.
Data sheet
Type of product | Plateau de surfaçage carbure |
Diameter | 125 |
Bore | 22,23 |
Grain | 12 |
Material | Acier |
Recommendation | Colle |
Content | 1 |
Person responsible EU | PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr |
WARNING and SAFETY | Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr |
User manual | Présentation du produit : Le plateau à poncer carbure de tungstène GOLD GRINDER est votre solution incontournable pour le ponçage. Conçu pour traiter le béton, le PVC et d'autres matériaux, il garantit un travail rapide et soigné. Caractéristiques principales : - Diamètre : 125 mm - Alésage : 22,23 mm - Grain : 12 - Vitesse de rotation maximale : 12 250 T/min - Normes : EN 13236 Instructions d'utilisation : 1. Installez le plateau sur votre meuleuse ou disqueuse. 2. Ajustez la machine à vitesse désirée. 3. Appliquez le plateau sur la surface à poncer, en maintenant une pression uniforme. Précautions d’utilisation : - Portez des équipements de protection individuelle. - Ne pas dépasser la vitesse de rotation maximale. - Évitez les contacts avec des surfaces non adaptées au ponçage. Entretien et nettoyage : - Nettoyez le plateau après chaque utilisation pour garantir sa longévité. - Rangez le produit dans un endroit sec et à l'abri des chocs. |
