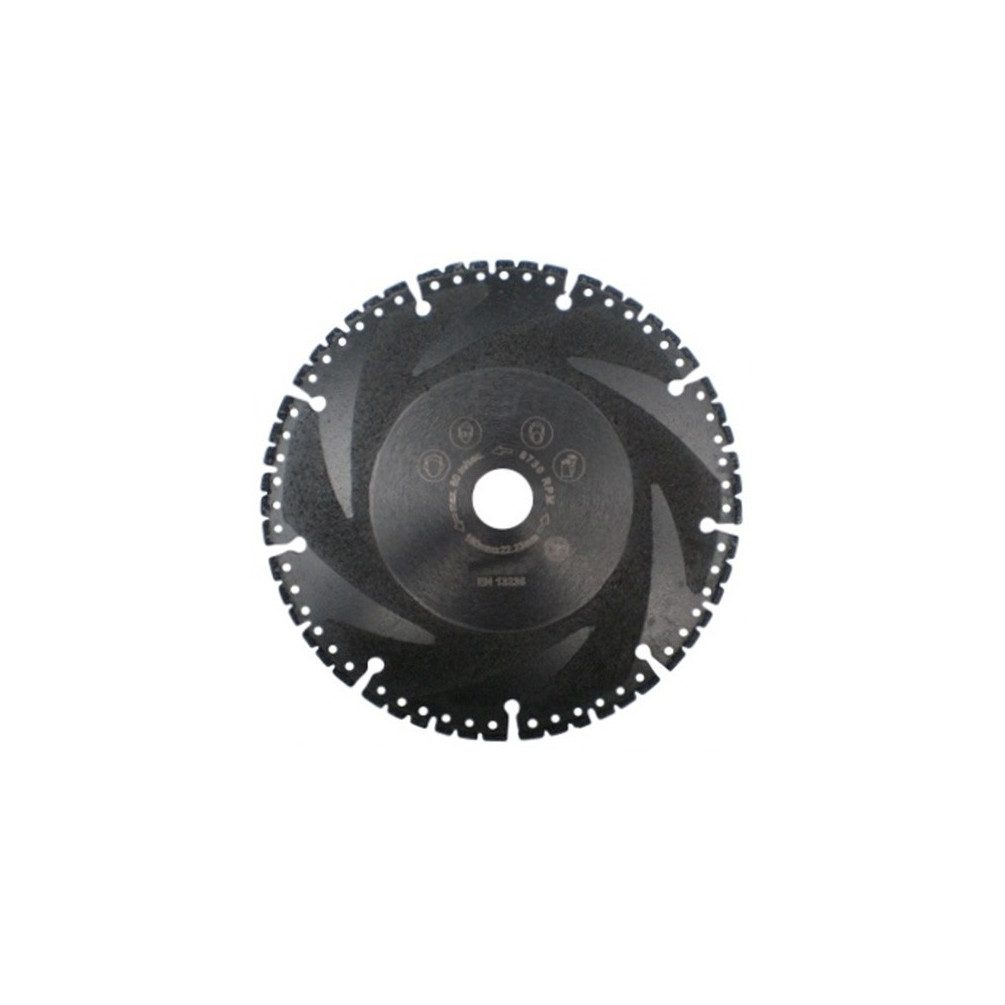

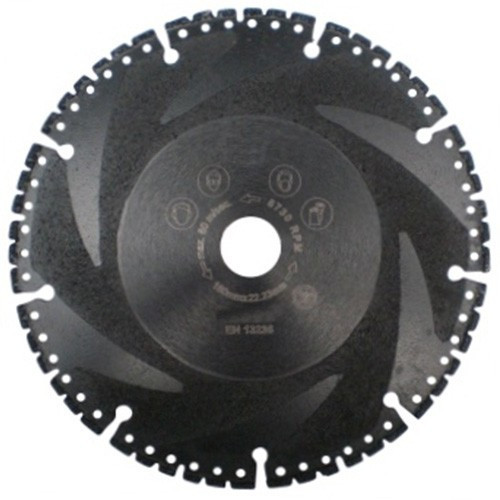

Diamond disc vacuum brazed Pro SIRIUS D. 125 x Al. 22,23 x Ht. 2 mm - multi-materials - Diamwood Platinum
Ref. DW-PLA3811267004*Photos non contractuelles
En savoir + sur Diamond disc vacuum brazed Pro SIRIUS D. 125 x Al. 22,23 x Ht. 2 mm - multi-materials - Diamwood Platinum
Vacuum brazed diamond disc with a high concentration of high-quality diamond for reduced sparking. This heat-resistant disc can cut almost any material on site. Dry or wet cutting. Suitable for machine: Grinder / Disc cutter. Uses: concrete, tile, brick, natural stone, wood, steel, cast iron, plastic, glass, rubber. Users: Bricklayers and other construction trades. Disc diameter: 125 mm. Disc bore: 22.23 mm. Segment height: 2 mm. Segment thickness : 2.4 mm. Maximum feed speed: 80 M/S up to D. 230 mm and 100 M/S for other diameters. Maximum rotation speed: 15,300 rpm for D.100 mm, 13,300 rpm for D. 115 mm, 12,250 rpm for D.125 mm, 10,930 rpm for D. 140 mm, 10,200 rpm for D. 150 mm, 8,500 rpm for D. 180 mm, 7,650 rpm for 200 mm, 6,650 rpm for D.230 mm, 6,100 rpm for 250 mm, 6,400 rpm for D. 300 mm, 5,500 rpm for D. 350 mm, 4,800 rpm for D. 400 mm, 4,250 rpm for D. 450 mm, 3,900 rpm for D. 500 mm, and 2,550 rpm for D. 600 mm. Diamwood PLATINUM products are top-of-the-range for professional and intensive use, all at factory prices to cut out the middleman. This product is of high quality European design (Germany) and complies with current standards (EN 13236). Use this product in accordance with the safety instructions and European machine standards in force. Diamwood is an expert in equipment for the construction and public works industry and has been dealing with tools and stationary machines for over 15 years.
Data sheet
Status | 2 |
Type of product | Disque diamant |
Bore | 22,23 |
Height | 2 |
Material | Acier |
Recommendation | Multi-matériaux |
Content | 1 |
Country of origin | DE |
Person responsible EU | PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr |
WARNING and SAFETY | Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr |
User manual | Présentation du produit : Le disque diamant vacuum brazed Pro de Diamwood est conçu pour des coupes précises et efficaces sur divers matériaux. Son utilisation principale inclut le béton, la tuile, la brique, et bien plus, permettant aux professionnels du BTP de travailler avec fiabilité. Caractéristiques principales : - Diamètre : 125 mm - Alésage : 22,23 mm - Hauteur des segments : 2 mm - Épaisseur des segments : 2,4 mm - Vitesse d'avance maximale : 80 M/S - Vitesse de rotation maximale : 12 250 T/min - Certifié conforme aux normes EN 13236 Instructions d'utilisation : 1. Installer le disque sur votre meuleuse ou disqueuse en respectant les instructions du fabricant. 2. Pour une coupe à sec, assurez-vous que le matériau est stable. 3. Pour une coupe à eau, utilisez un système de refroidissement adéquat. 4. Suivez les recommandations de vitesse de rotation indiquées pour garantir la sécurité et l'efficacité. Précautions d'utilisation : - Portez toujours des équipements de protection individuelle (EPI) appropriés. - Ne pas dépasser les vitesses de rotation maximales recommandées. - Vérifiez régulièrement l'état du disque et remplacez-le si nécessaire. Entretien et nettoyage : - Nettoyez le disque après chaque utilisation pour éviter l'accumulation de résidus. - Rangez le disque dans un endroit sec et sûr pour prolonger sa durée de vie. |
new | Diamwood Disque diamant vacuum brazed Pro 125 mm - Alésage 22,23 mm - Hauteur 2 mm - Multi-matériaux, résistant à la chaleur et conforme aux normes EN 13236 |
new | Diamwood Disque diamant vacuum brazed Pro D. 125 mm - Alésage 22,23 mm - Hauteur 2 mm - Multi-matériaux, résistant à la chaleur, normes EN 13236 |
new | Diamwood Disque diamant vacuum brazed Pro D. 125 mm - Alésage 22,23 mm - Multi-matériaux, haute performance |
KEYWORDS | disque diamant, vacuum brazed, Diamwood, coupe multi-matériaux, disque de meuleuse, alésage 22,23 mm, 125 mm, outils BTP, haute qualité, normes EN 13236 |
new | ✅ DISQUE DIAMANT HAUTE QUALITÉ : Conçu pour une coupe précise sur tous types de matériaux, incluant béton, tuile, brique et plus. |
new | ✅ TECHNOLOGIE VACUUM BRAZED : Réduit les étincelles lors de la coupe, garantissant sécurité et efficacité, idéal pour une utilisation professionnelle. |
new | ✅ UTILISATION POLYVALENTE : Adapté pour meuleuses et disqueuses, vous pouvez couper à sec ou à eau selon votre projet. |
new | ✅ HAUTE PERFORMANCE : Résistant à la chaleur avec une vitesse de rotation maximale de 12 250 T/min pour un rendu optimal. |
new | ✅ DESIGN EUROPÉEN : Fabriqué en Allemagne, respectant les normes de sécurité et d'efficacité en vigueur pour les outils BTP. |
