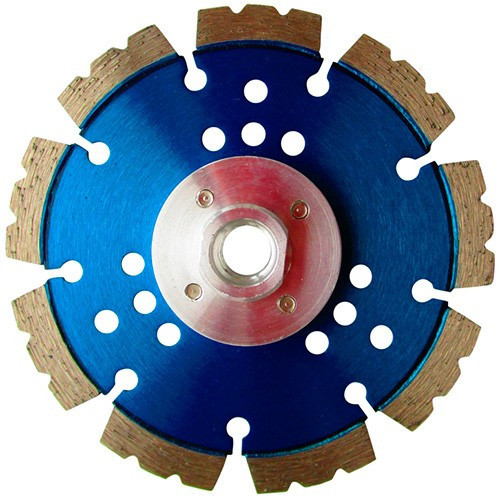

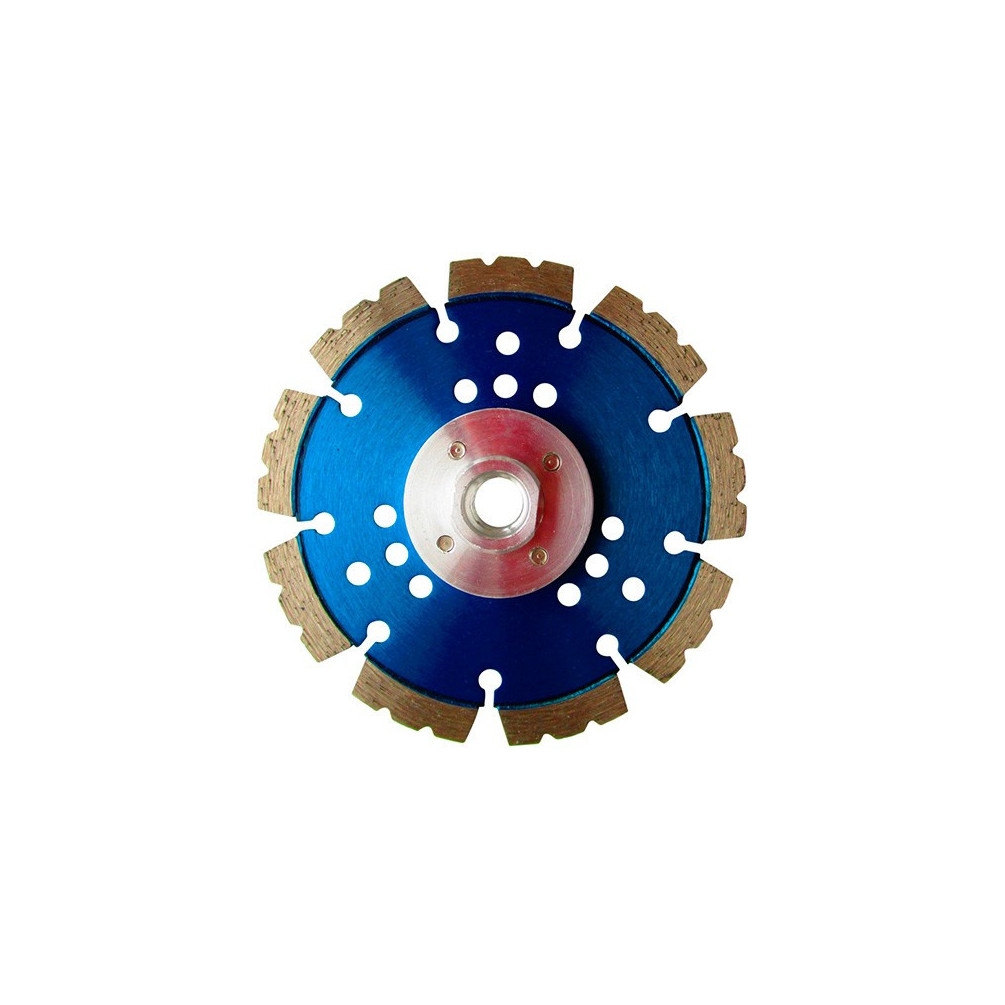

Diamond Disc Turbo Pro ORION D. 230 x Flange M14 x Ht. 10 mm - Reinforced Concrete, Granite, Natural Stone - Diamwood
Ref. DW-PLA381383017*Photos non contractuelles
En savoir + sur Diamond Disc Turbo Pro ORION D. 230 x Flange M14 x Ht. 10 mm - Reinforced Concrete, Granite, Natural Stone - Diamwood
High End Laser Segmented Disc for Grinders / Discers - Diamwood
Diamwood's Premium Laser Turbo Segment Disc is designed to deliver exceptional performance in a variety of applications. Featuring an innovative ventilated body, this disc ensures optimum cooling during use, prolonging its life and guaranteeing high cutting speed.
Benefits :
- Ventilated body for optimum cooling
- High cutting speed
- Long service life thanks to special segment design
- Can be used for dry or wet cutting
- M14 mounting flange for precise flat cuts
Technical specifications :
- Suitable for use on reinforced concrete, granite, natural stone, concrete, breeze block, brick, aerated concrete, clinker and other building materials
- Disc diameter: 230 mm
- Disc mounting: M14
- Segment height: 10 mm
- Segment thickness: 2.6 mm
- Maximum feed speed: 80 M/S up to 230 mm diameter and 100 M/S for other diameters
Maximum speeds (rpm):
- D.100 mm: 15 300
- D.115 mm: 13 300
- D.125 mm: 12 250
- D.140 mm: 10 930
- D.150 mm: 10 200
- D.180 mm: 8 500
- D.200 mm: 7 650
- D.230 mm: 6 650
- D.250 mm: 6 100
- D.300 mm: 6 400
- D.350 mm: 5,500
- D.400 mm: 4 800
- D.450 mm: 4 250
- D.500 mm: 3 900
- D.600 mm: 2 550
This top-of-the-range product is specially designed for professionals in the trade, offering superior European quality that meets EN 13236 standards. Made in Germany, this disc is available at factory prices, cutting out the middleman. Make sure you follow the safety instructions and European standards in force when using it. Put your trust in Diamwood, experts in equipment for the construction industry, with over 15 years' experience in tools and stationary machines.
Data sheet
Type of product | Disque diamant |
Diameter | 230 |
Height | 10 |
Material | Acier |
Recommendation | Béton armé |
Content | 1 |
Person responsible EU | PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr |
WARNING and SAFETY | Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr |
User manual | Présentation du produit : Le Disque à segments turbo soudés laser de Diamwood est un outil haut de gamme pour la meuleuse, conçu pour des performances optimales dans la coupe de matériaux durs. Ce disque est essentiel pour les professionnels du bâtiment. Utilité principale : Idéal pour couper efficacement le béton armé, le granite et la pierre naturelle. Avantages : Sa conception avec un corps ventilé améliore le refroidissement et la longévité du disque. Caractéristiques principales : 230 mm de diamètre, flasque de montage M14, hauteur de segment de 10 mm, épaisseur de 2,6 mm, vitesse d'avance maximale de 80 M/S. Instructions d’utilisation : 1. Assurez-vous de porter des équipements de protection. 2. Fixez le disque sur la meuleuse. 3. Commencez à couper en appliquant une pression uniforme. 4. Pour une coupe à eau, assurez-vous d'avoir un système d'arrosage adapté. Précautions d’utilisation : Respectez les consignes de sécurité, ne forcez pas la coupe et vérifiez l'état du disque avant chaque utilisation. Entretien et nettoyage : Nettoyez régulièrement le disque après usage et conservez-le dans un endroit sec pour éviter l'oxydation. |
