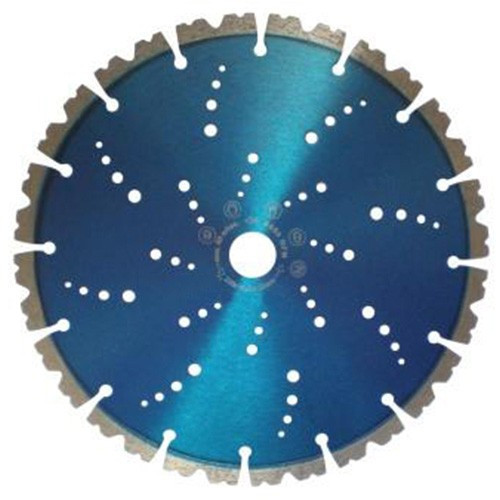

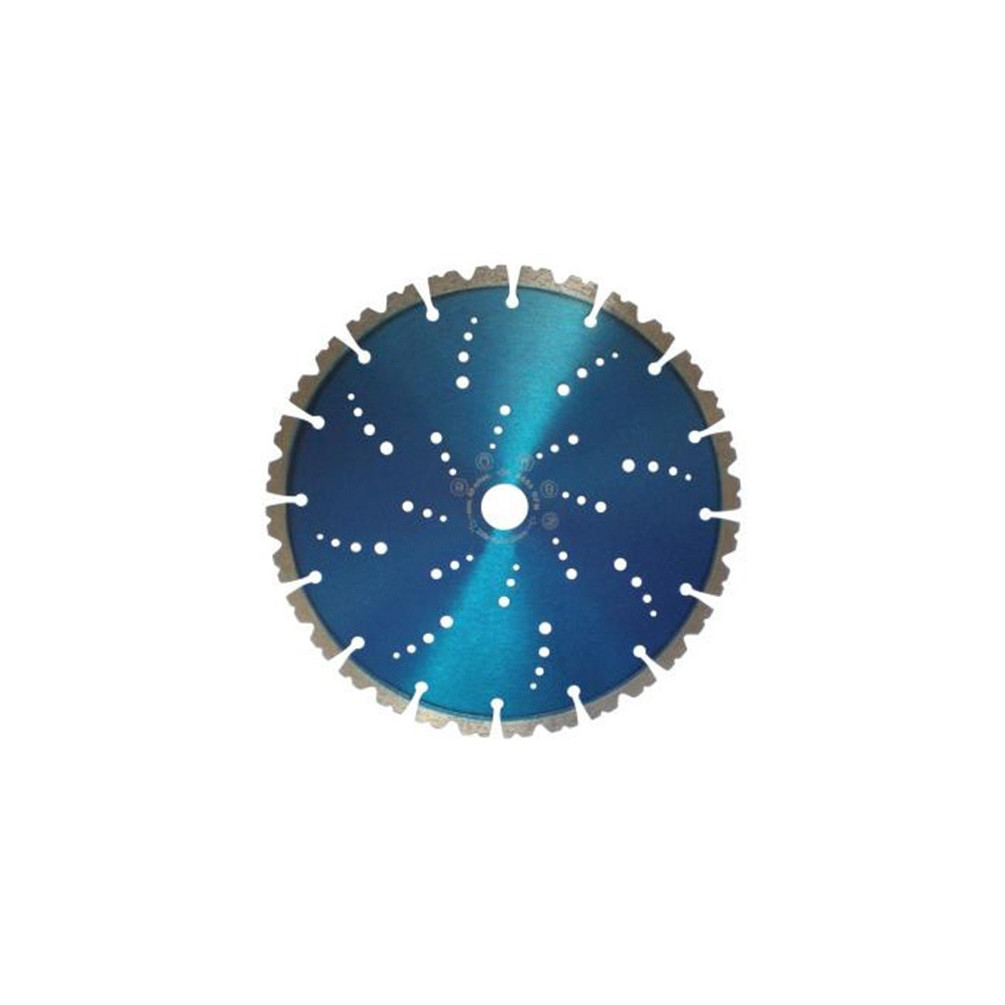

Diamond Disc Turbo Pro ORION D. 300 x Al. 30 x Ht. 10 mm - Reinforced Concrete, Granite, Natural Stone - Diamwood

High End Turbo Laser Welded Segment Disc

Diamwood's top-of-the-range turbo laser-welded segment disc is designed to deliver exceptional performance in a variety of applications. Featuring a ventilated body, this disc ensures optimum cooling during use, prolonging its life and guaranteeing consistent results.

Benefits :

• Ventilated body for optimum cooling
• High cutting speed
• Long service life thanks to special segment design
• Can be used dry or with water

Technical specifications:

• Suitable for machines: Thermal cutter / Floor saw / Table saw
• Applications: Reinforced concrete, granite, natural stone, concrete, breeze block, brick, aerated concrete, clinker and other building materials
• Users: Bricklayers, building and civil engineering trades
• Disc diameter: 300 mm
• Disc bore: 30 mm
• Segment height: 10 mm
• Segment thickness: 3 mm
• Maximum feed speed: 80 M/S up to D. 230 mm and 100 M/S for other diameters
• Maximum rotation speed :
  • 15,300 rpm for D.100 mm
  • 13,300 rpm for D. 115 mm
  • 12,250 rpm for D.125 mm
  • 10,930 rpm for D. 140 mm
  • 10,200 rpm for D. 150 mm
  • 8,500 rpm for D. 180 mm
  • 7,650 rpm for D. 200 mm
  • 6 650 rpm for D. 230 mm
  • 6,100 rpm for D. 250 mm
  • 6,400 rpm for D. 300 mm
  • 5,500 rpm for D. 350 mm
  • 4,800 rpm for D. 400 mm
  • 4,250 rpm for D. 450 mm
  • 3,900 rpm for D. 500 mm
  • 2,550 rpm for D. 600 mm

Quality and Standards: Diamwood products are recognised as top-of-the-range for professional and intensive use. We offer factory prices to cut out the middleman, while guaranteeing high-quality European design, manufactured in Germany to current standards (EN 13236).

Rely on Diamwood, experts in equipment for the construction industry, with over 15 years' experience in tools and stationary machines. Use our products in complete safety, complying with safety instructions and current European standards for machinery.
