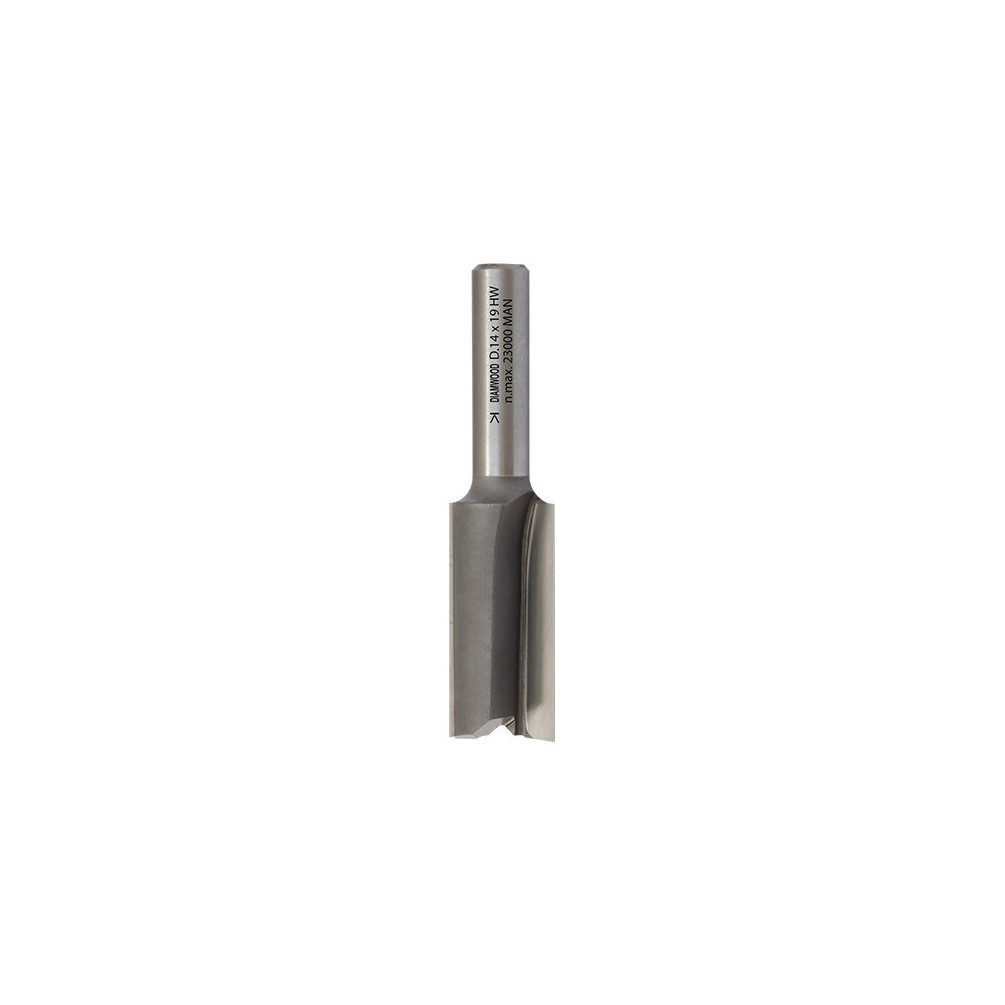

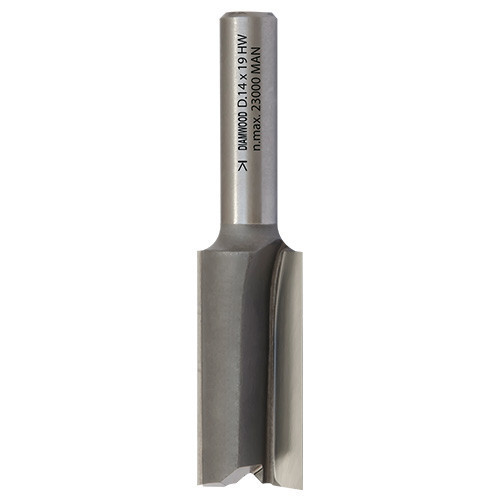

HM micrograin straight scoring bit D. 8 x Lt. 57 x Lu. 19 x Q 8 mm x Z2 - Diamwood Platinum
Ref. DW-PLA466472001*Photos non contractuelles
En savoir + sur HM micrograin straight scoring bit D. 8 x Lt. 57 x Lu. 19 x Q 8 mm x Z2 - Diamwood Platinum
Straight micrograin carbide router bit. This professional product is suitable for intensive use on CNC machines. Diameter: 8 mm. Total length: 57 mm. Usable length: 19 mm. Shank: 8 mm. Drill bit with 2 side cuts and sharpening for plunge cuts in hardwoods and panels. Ideal for a variety of joinery, fittings and cabinetmaking jobs. Diamwood PLATINUM products are top-of-the-range for intensive professional use. This product is of high quality SWISS design and complies with current standards. Diamwood is an expert in equipment for the construction industry, and has been mastering tools and stationary machines for over 15 years.
Data sheet
Type of product | Mèche à rainer droite |
Diameter | 8 |
Length | 57 |
Useful length | 19 |
Material | Tungsten carbide |
Recommendation | Bois |
Content | 1 |
Toothing | Z 2 |
Tail | 8 |
Person responsible EU | PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email : contact@prestadiam.fr |
WARNING and SAFETY | Warning and Safety Information Safety Warning: This product is intended for professional and domestic use. Please follow the instructions below to ensure safe use: Proper Use: Use this tool only in accordance with the instructions provided. Do not use this tool for unintended applications. General precautions: Always wear personal protective equipment (gloves, safety goggles, hearing protection). Make sure the work area is clean and clear. Do not use the tool near water or in damp conditions. Handling and storage: Keep the tool out of the reach of children. Store the tool in a safe, dry place when not in use. Check the condition of the tool regularly. If damaged, remove immediately from use. Risk warning: This tool may present a risk of cuts, crushing or other injuries. In the event of injury, consult a doctor immediately. Recycling and disposal: Follow local regulations for disposal of this product Person responsible in the EU for our products: PRESTA'DIAM 26 Chemin du Godard 38110 ST Didier de la Tour Email: contact@prestadiam.fr |
User manual | Présentation du produit : La mèche à rainer droite de Diamwood est un outil professionnel conçu pour effectuer des rainures précises dans le bois. Son design en carbure micrograin la rend idéale pour une utilisation intensive, notamment sur machines à commande numérique (CNC). Utilité principale et avantages : Cette mèche permet des coupes plongeantes dans les bois durs et panneaux, offrant une grande précision pour différents travaux de menuiserie, agencement ou ébénisterie. Conçue en Suisse, elle respecte les normes de qualité les plus élevées. Caractéristiques principales : - Diamètre : 8 mm - Longueur totale : 57 mm - Longueur utile : 19 mm - Emmanchement / Queue : 8 mm - Nombre de coupes : 2 Instructions d'utilisation : 1. Vérifiez la compatibilité de la mèche avec votre défonceuse. 2. Installez la mèche dans la machine. 3. Réglez la profondeur de coupe souhaitée. 4. Commencez la coupe en maintenant une pression constante. Précautions d'utilisation : - Toujours porter des lunettes de protection lors de l'utilisation. - Gardez les mains éloignées de la zone de coupe. - Ne pas forcer la mèche pour éviter la casse. Entretien et nettoyage : - Après utilisation, retirez la mèche et nettoyez la queue avec un chiffon sec. - Rangez dans un endroit sec pour éviter l'oxydation. |
